2x holder suitable for STEMA for clamp holders / parking supports including screw set

clamp holder attachment for trailer supports

suitable for Stema OPTI 750, 850

FT Series: FT 7.5-20-10.1B, FT 8.5-20-10.1B

Offer content:

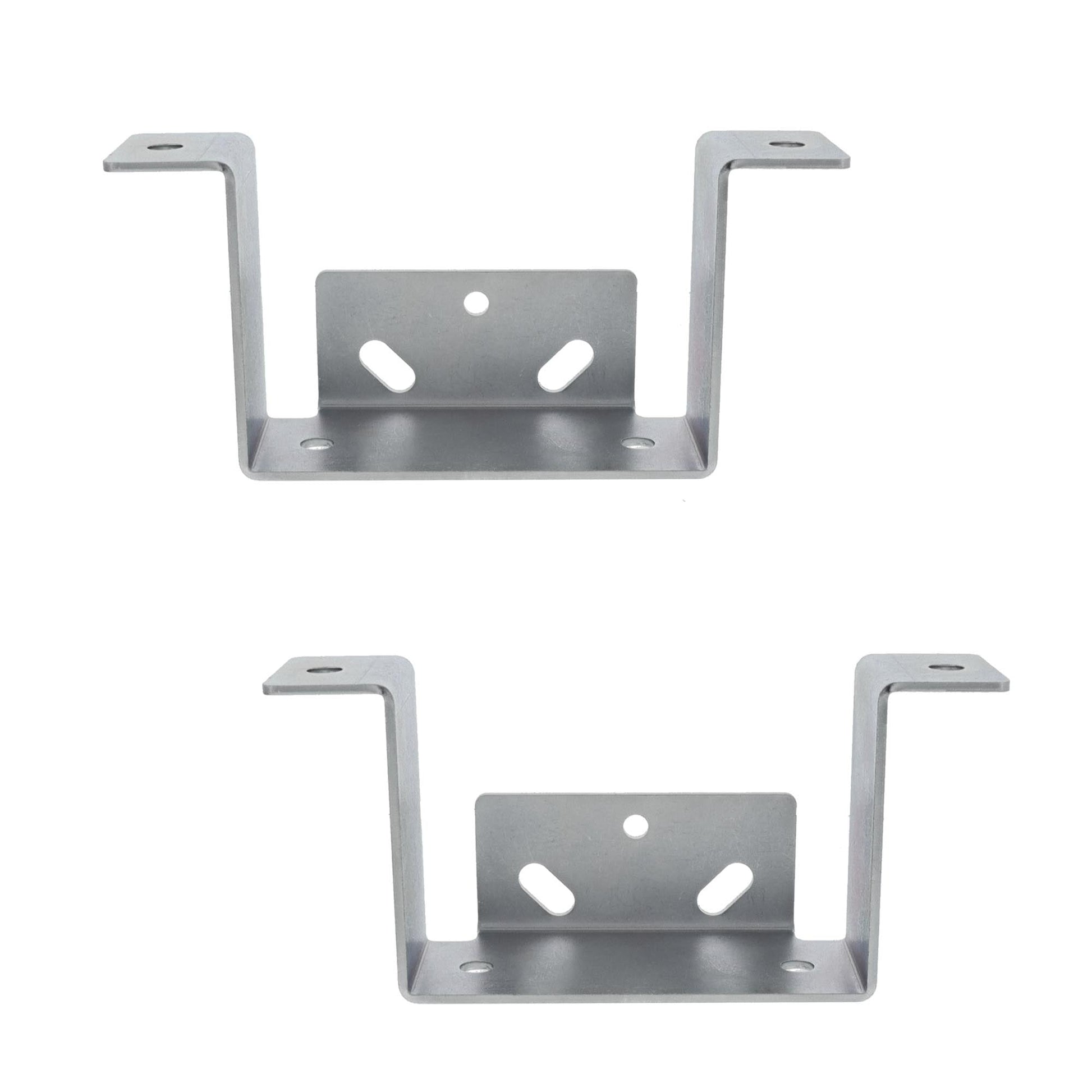

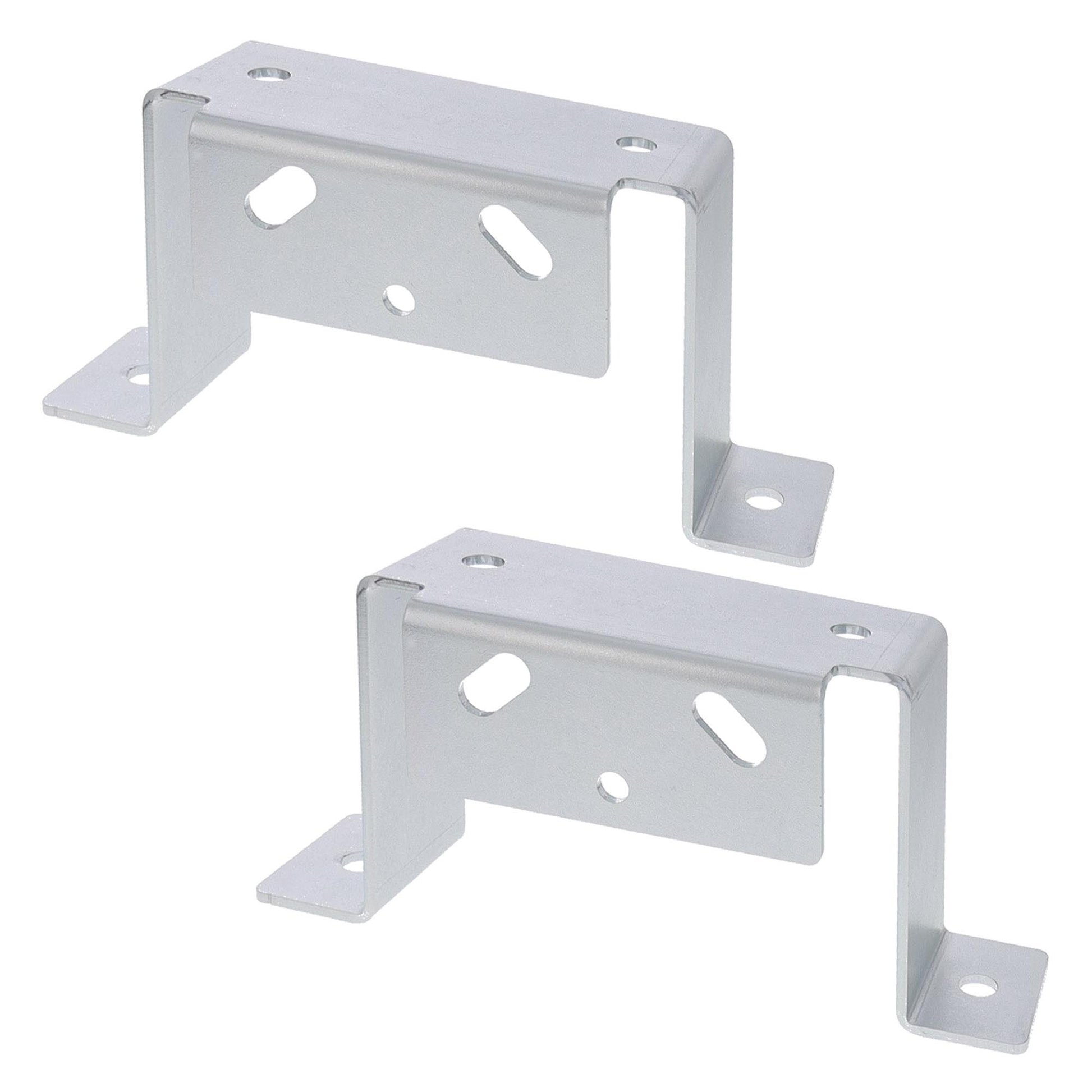

2 brackets

including screw set

very stable and durable design made of galvanized sheet steel

Description:

For many STEMA 750/850kg trailers, these brackets are required to attach clamp holders for parking supports at the rear of the trailer.
The holes on the side of the frame are already there, the holder only needs to be attached here and additionally screwed to the base plate.

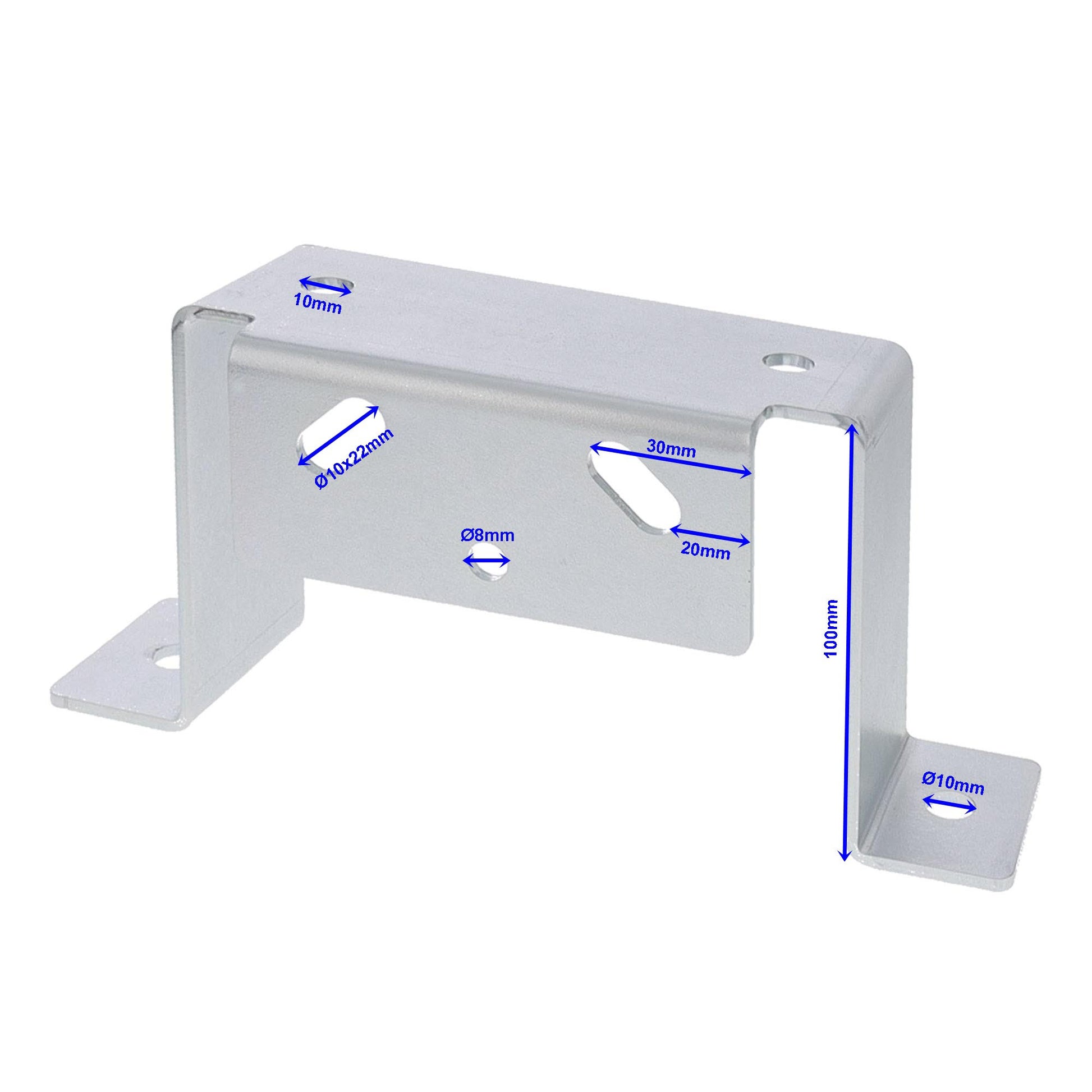

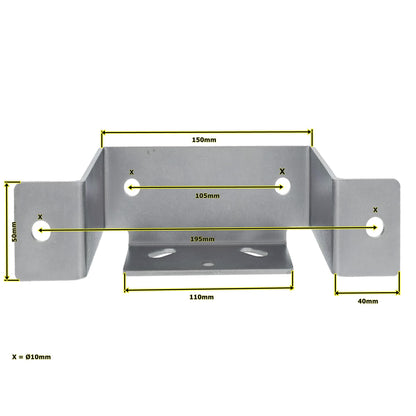

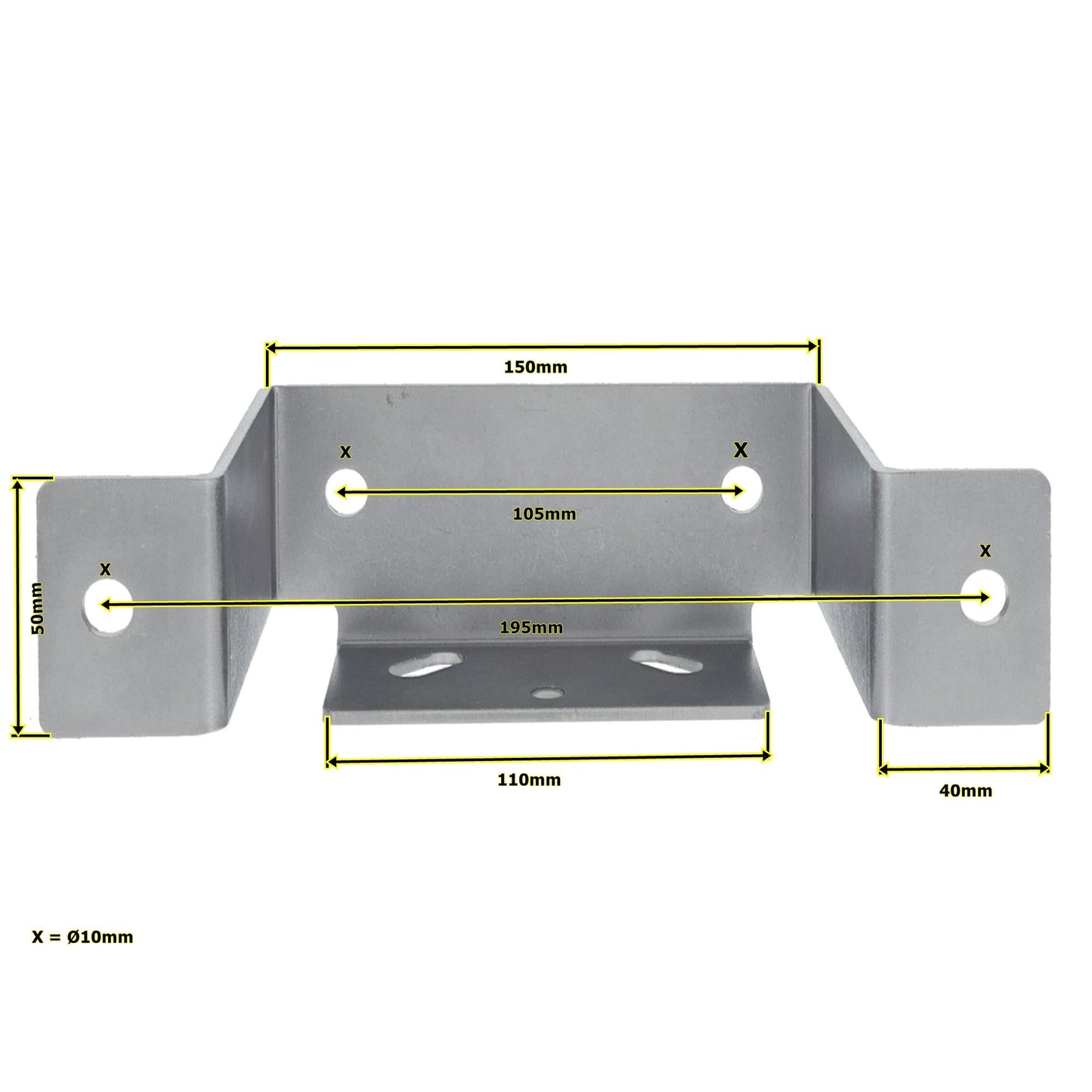

Mount details:

• Material: sheet steel
• Surface: galvanized
• Material thickness: 3.1mm
• Length: approx. 225mm
• Width: approx. 65mm
• Height: approx. 100mm

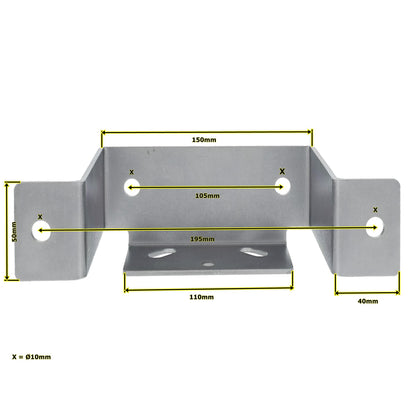

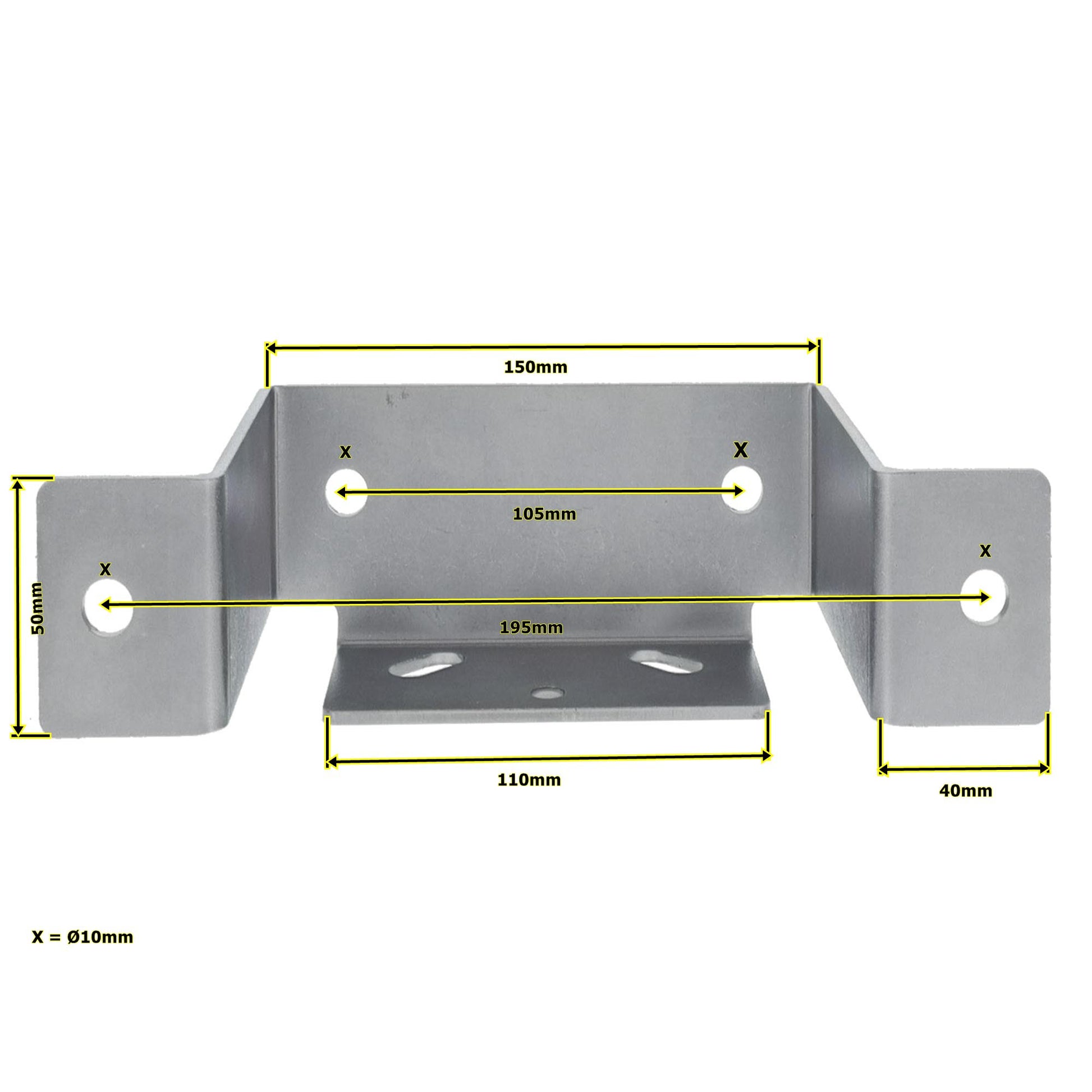

• Distance between holes for frame mounting: approx. 195mm Ø10.5mm

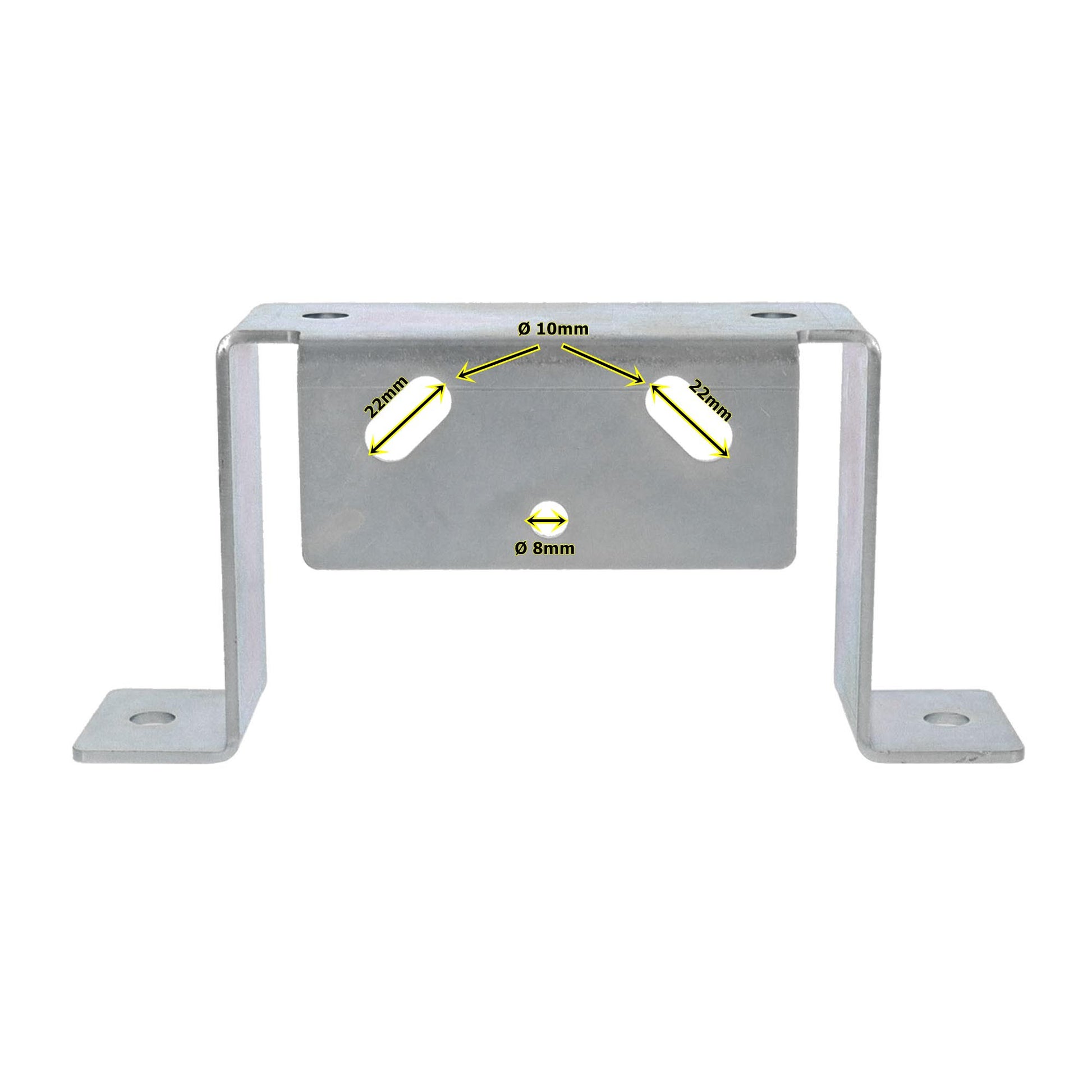

• Distance between holes for clamp holder: approx. 105mm Ø10.5mm

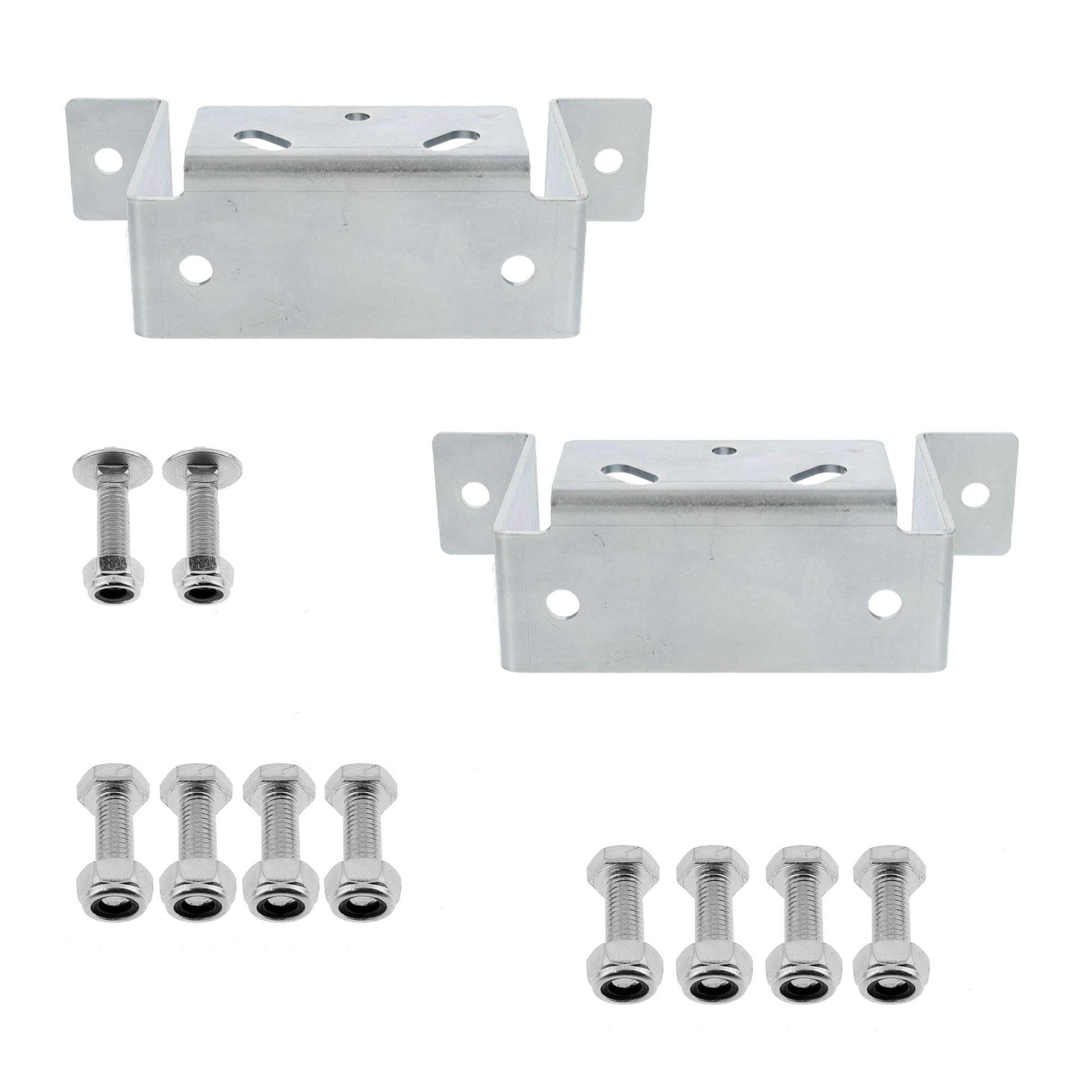

Details screw set:

• 8x screw M10x30
• 8x self-locking nut M10
• 2x round-head screw M8x30
• 2x self-locking nut M8

Notes:

For some STEMA trailers sold by the company "Bauhaus", additional spacers may need to be purchased. If in doubt, you must measure the distance from the frame to the side wall; this should be a maximum of 10cm. (Please check before purchasing)
Not suitable for type B700/750 & high loader HL750.
