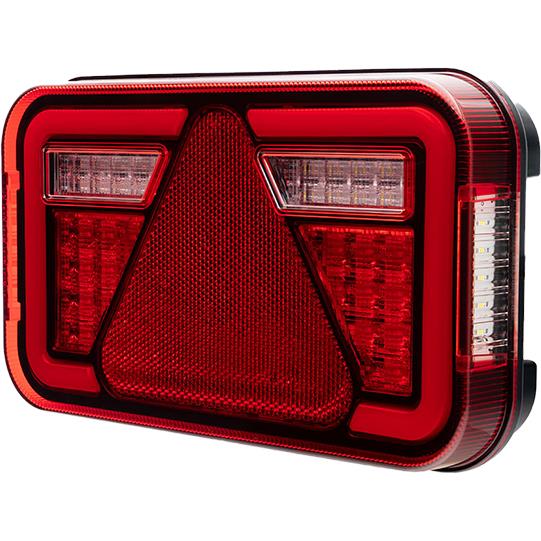

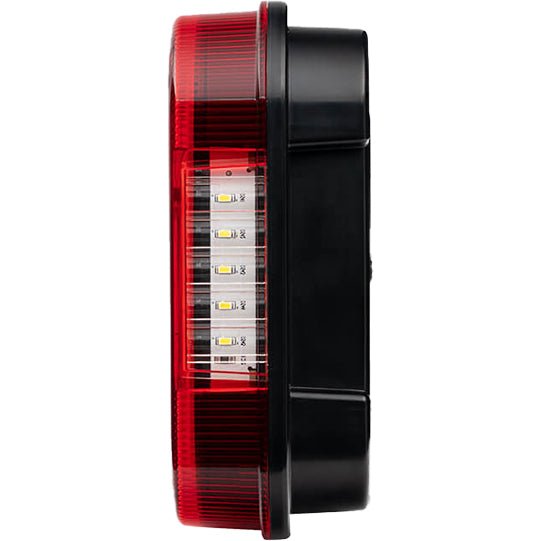

Aspöck MultiLED IV LED rear light left 5-pin bayonet 12/24V

MULTILED IV 4

Full-LED multifunctional light with 5-pin bayonet connection

Left (driver's side)

🔧 Innovative LED technology for maximum safety & longevity!
The MULTILED IV full-LED multi-function light impresses with first-class luminosity , wide-area light distribution , and modern Glowing Body technology for uniform standing light. Thanks to its IP6K9K protection rating , it is extremely resistant to water, dust, and chemical influences. The 5-pin bayonet connection ensures quick and secure installation .

What makes the MULTILED IV special?

This high-quality LED taillight combines multiple lighting functions in a compact and robust design . The scratch-resistant and chemical-resistant lens ensures a long service life , while the large illuminated area ensures optimal visibility in traffic .

Ideal for:
✔ Trailers & semi-trailers
✔ Trailers & Caravans
✔ Agricultural vehicles

Highlights at a glance:

✔ Maximum visibility: Large-area, homogeneous LED lighting for best visibility
✔ Durable & robust: Scratch-resistant, chemical-resistant lens
✔ High protection standard: Protection class IP6K9K – dust and water resistant
✔ Glowing Body Technology: Modern, uniform parking light for increased safety
✔ ADR Zone 2 approved: Perfect for commercial use
✔ 5-pin bayonet connector: Simple & reliable connection
✔ Easy to install: screw spacing 152 mm for easy installation
✔ Versatile: Operating voltage 9V – 33V for 12V & 24V systems
✔ Manufacturer number Aspöck: 34-8941-037

Technical data:

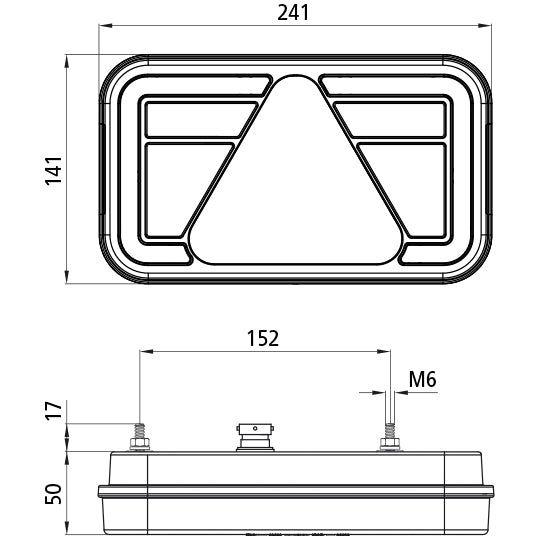

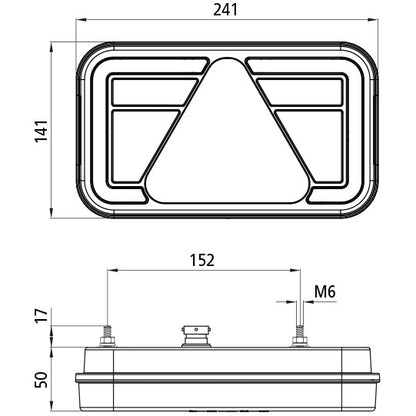

📏 Overall dimensions of the lens (LxWxH): 241 x 141 x 51 mm
📌 Mounting screw spacing: 152 mm
🔌 Voltage range: 9V – 33V (for 12V & 24V operation)
⚡ Connection: 5-pin bayonet connector
💡 Lighting functions:

• Rear light: 3.2 W (13.5 V) / 2.4 W (28 V)
• Brake light: 0.9 W (13.5 V) / 0.7 W (28 V)
• Indicator: 2.2W (13.5V) / 1.3W (28V)
• Rear fog light: 2.2 W (13.5 V) / 2.4 W (28 V)
• Reversing light: 1.8 W (13.5 V) / 1.45 W (28 V)
  ✅ Protection class: IP6K9K (high protection against water & dust)
  ⚙ Type approval: L 2a R1 S1 F1 AR IIIA 148R-00
  🔄 Reverse polarity protection: Yes

📦 Scope of delivery:

🎁 1x MULTILED IV full-LED multifunctional light with 5-pin bayonet connection

Why this LED tail light?

🚗 Maximum safety & visibility: Uniform, glare-free LED technology
🔧 Durable & resilient: Robust construction for extreme conditions
💡 Easy installation: 5-pin bayonet connection & 152 mm screw spacing

🔎 Order now & ensure reliable vehicle lighting!
📦 Fast shipping | ✅ Tested quality | 🔧 Easy installation
