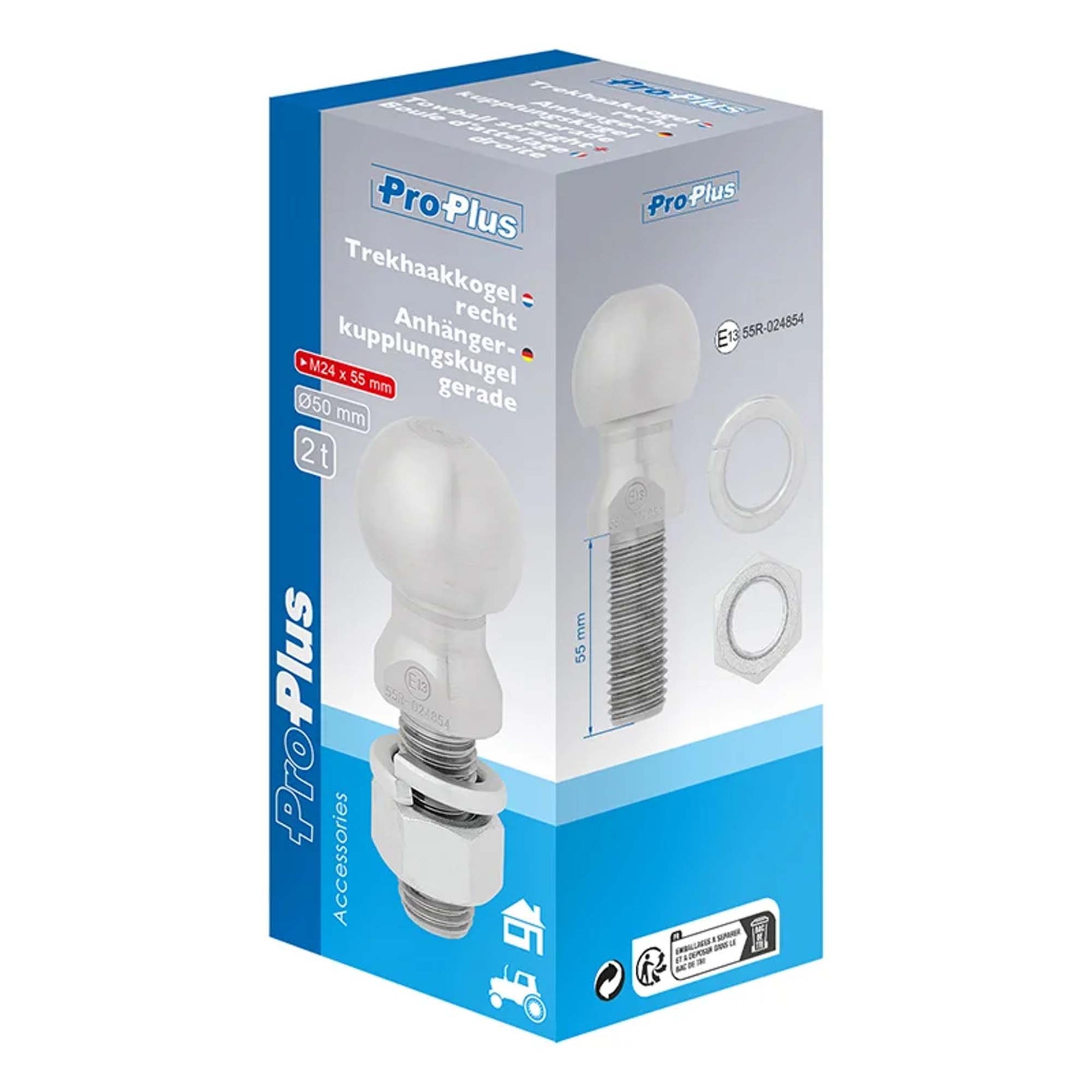

Ball head straight 2000kg M24x55mm E13-tested

Trailer ball head 50 mm straight – E13 tested

M24x55mm thread

loadable up to 2000 kg

This trailer coupling ball head is the perfect solution for use on cars, quads, ride-on mowers, tractors, and farm track. Made of chrome-plated steel, the coupling ball head is particularly robust and durable. It is suitable for 50 mm coupling balls and is approved for use in accordance with German road traffic regulations. With its E13 certification, it meets the high requirements for safe operation on public roads.

Technical details:

• Thread: M24 x 55 mm
• Total length: 128 mm
• Material: steel, chrome-plated
• Weight: 0.95 kg
• Load values:
  • D-value: 9.81 kN
  • Support load (S): 200 kg
  • Maximum load: 2000 kg
• Scope of delivery: Includes galvanized nut and washer
• Approval: E13 tested (R55), for use in road traffic

Areas of application:

The towing ball head is ideal for use on car trailers, agricultural equipment, field rails and many other applications that require a reliable coupling.

Advantages:

• Suitable for all 50 mm tow ball couplings
• Robust, chrome-plated material for a long service life
• High resilience
• Easy assembly
