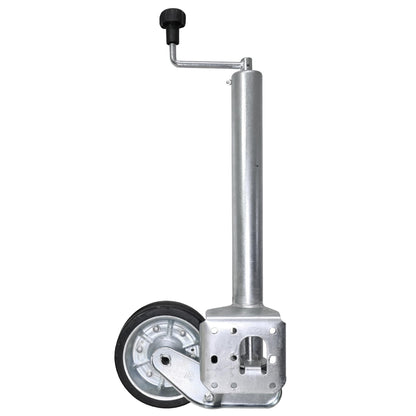

Support wheel 500KG 200x60 long tube + screw set

TMN Automatic Heavy Duty Jockey Wheel + Screw Set

support load: 500 kg

Extra long tube for a higher turning depth

for heavy trailers, caravans, car transporters, etc.

Description :

Support wheels are part of the support devices on central axle trailers, which are prescribed by the STVZO if the support load is more than 50 kg. They must be height-adjustable and attached in a captive manner.

They are equipped with wheels for maneuvering or parking the trailer. They are mounted directly or with various brackets on the drawbar.

Details support wheel:

• Built-in thrust bearing under the crank
• Pipe diameter: 60 mm
• solid rubber wheel with steel rim Ø200 x 60 mm
• Welded universal flange for attachment to drawbar or overrun device
• Static load capacity: 500kg
• galvanized
• swiveling
• easy operation of the crank
• reinforced console
• with grease nipple

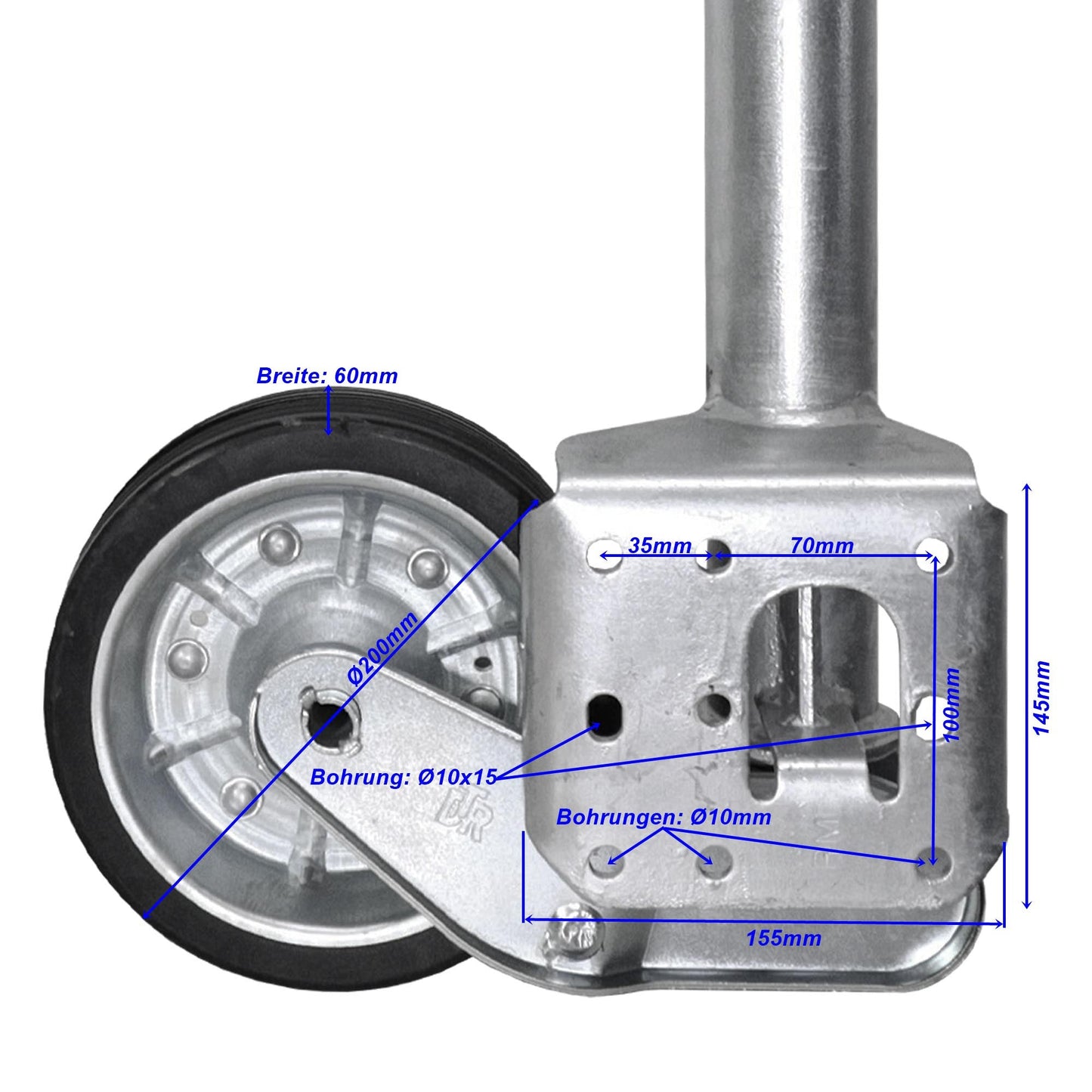

• Dimensions: see product images

Details screw set:

• 4x M10x30 screw
• 4x M10 self-locking nut
• 4x washer Ø10mm
