Support wheel 500KG TD60V 200x50 increased load capacity including fastening screws

automatic trailer support wheel

support load: 500 kg

type TD60V

with increased load-bearing capacity

for heavy trailers, caravans, car transporters, etc.

incl. mounting kit

Description :

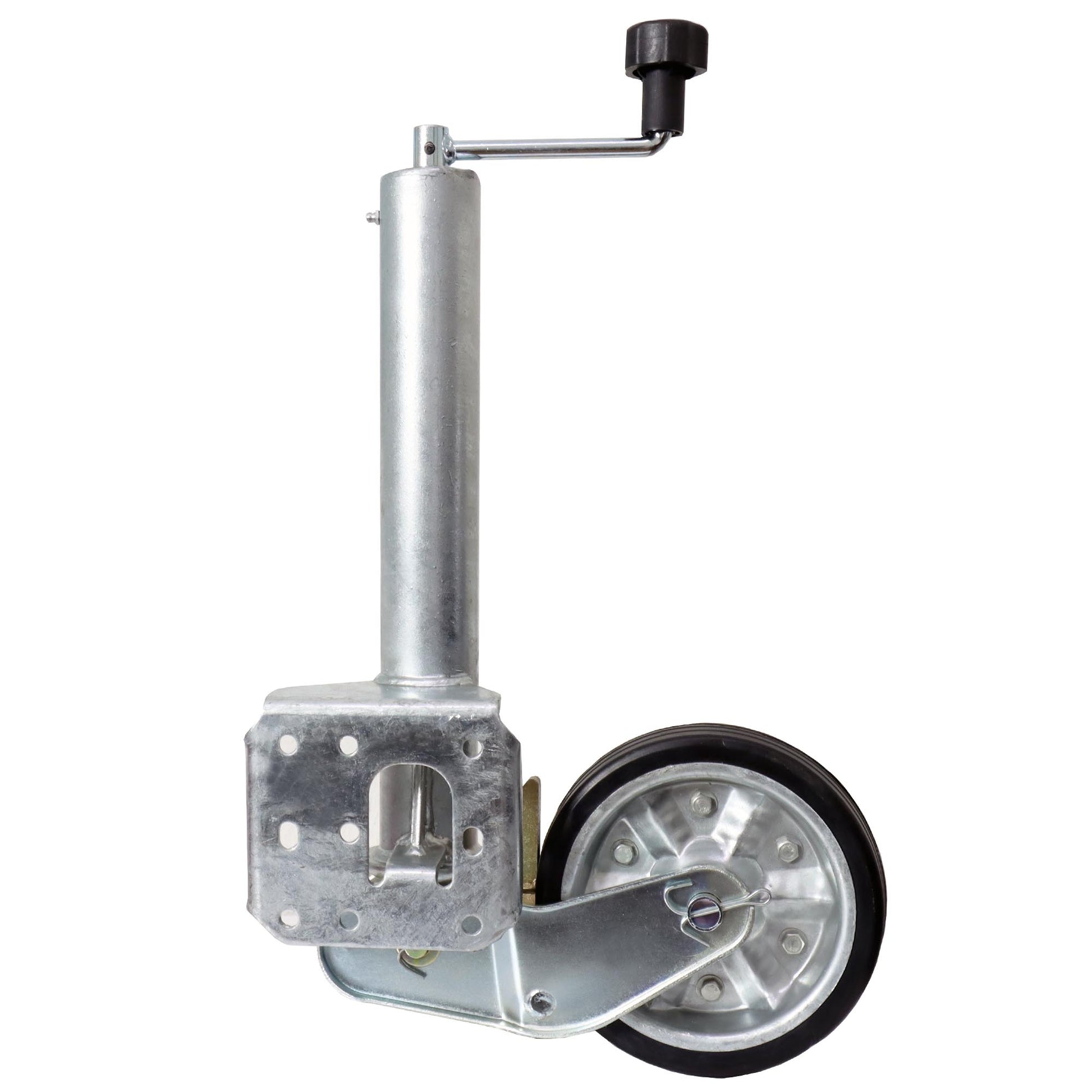

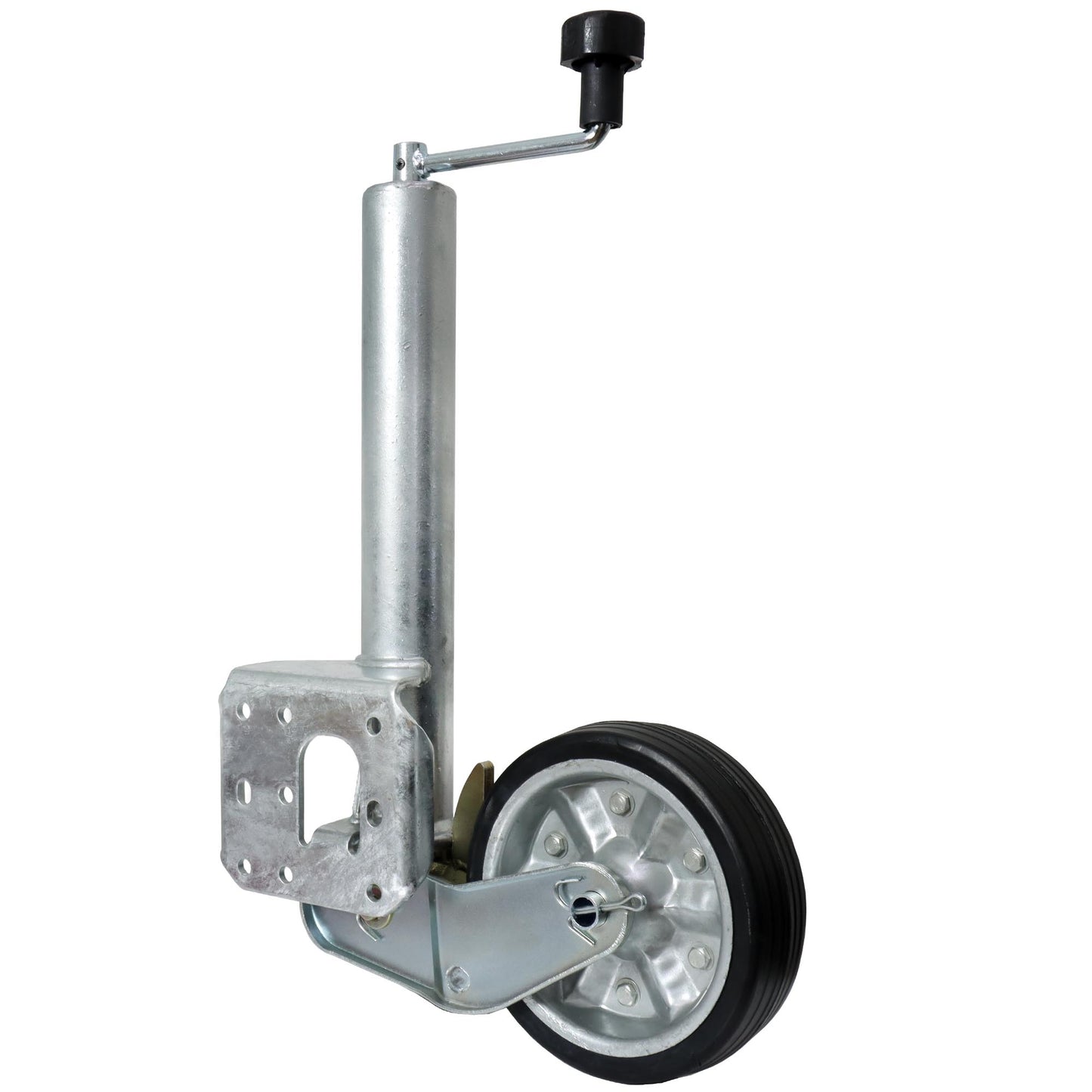

The automatic trailer support wheel type TD60V with increased load capacity is a real helper for heavy trailers, caravans and car transporters. This support wheel is perfect for transporting heavy loads and offers a static load capacity of 500 kg.

Support wheels are one of the indispensable support devices on central axle trailers, which the STVZO prescribes if the support load is more than 50 kg.

This support wheel is equipped with a built-in thrust bearing under the crank and a tube diameter of 60 mm. It has a solid rubber wheel with a steel rim with a diameter of Ø200 x 50 mm and a welded universal flange for attachment to the drawbar or overrun device. Galvanized, pivotable and equipped with a grease nipple, the automatic trailer support wheel enables easy operation of the crank and is easy to handle with a weight of only approx. 11 kg.

Convince yourself of the quality and load-bearing capacity of the automatic trailer support wheel and take a look at the dimensions in the product images. With this robust and reliable helper, maneuvering and parking heavy trailers becomes child's play.

Details support wheel:

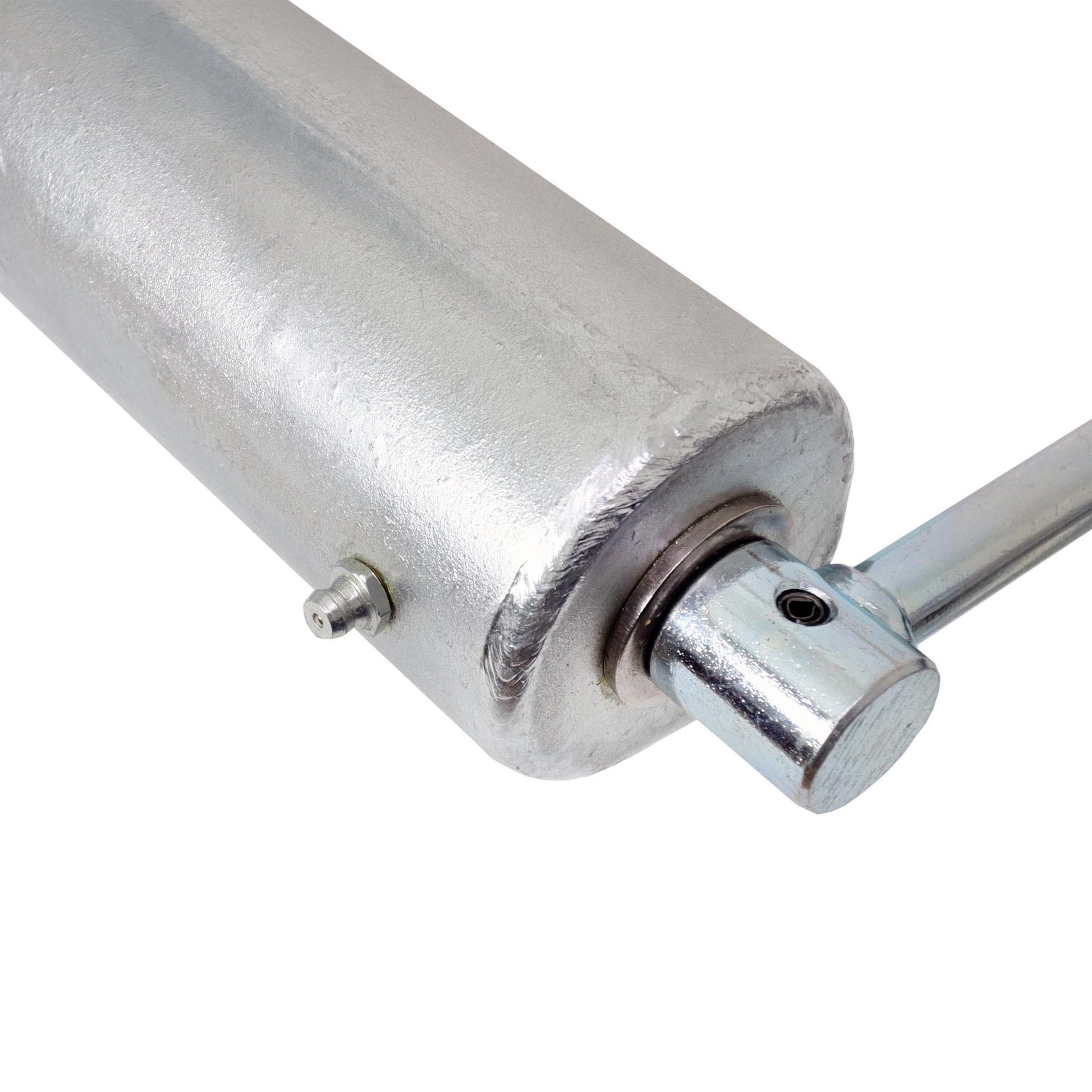

• Built-in thrust bearing under the crank
• Pipe diameter: 60 mm

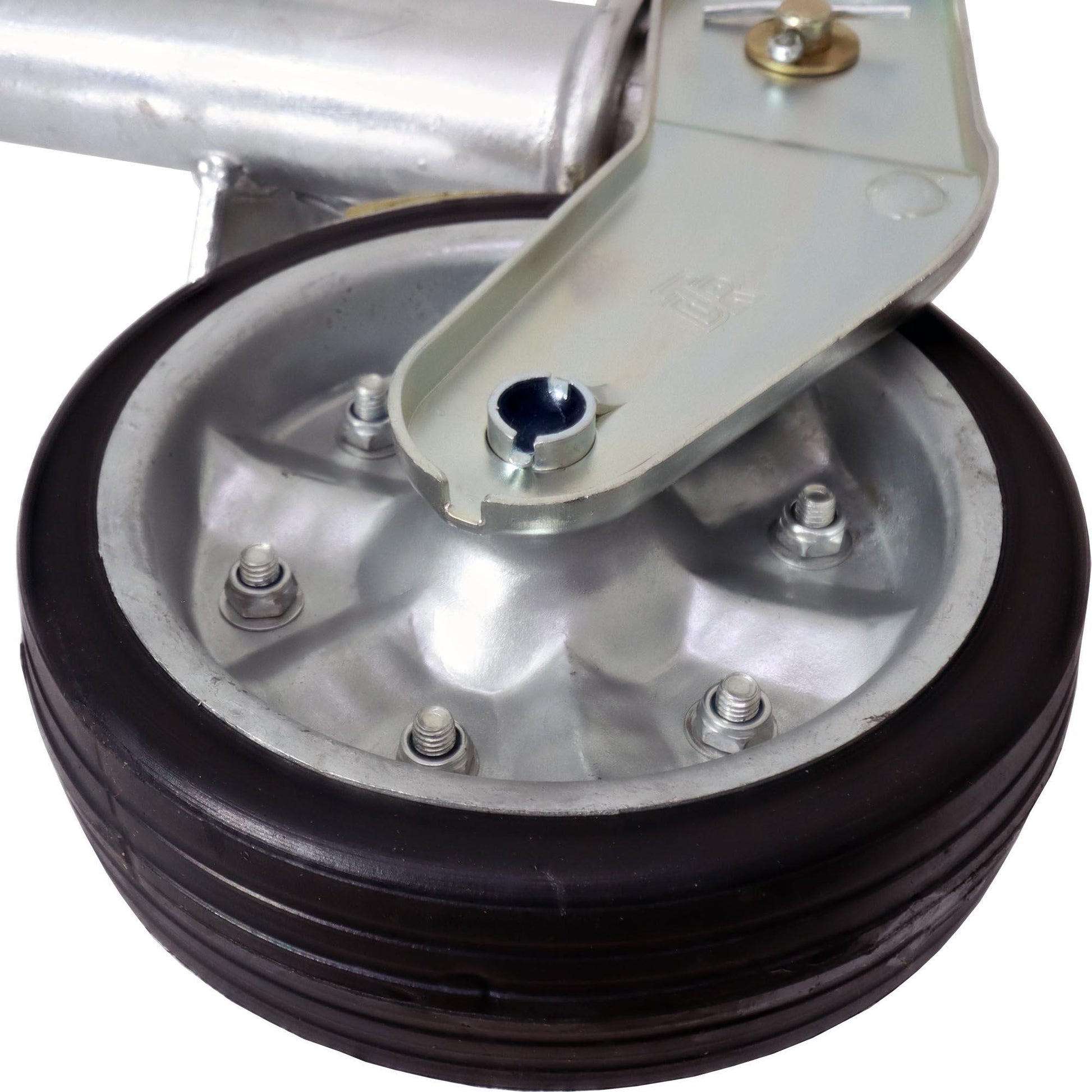

• solid rubber wheel with steel rim Ø200 x 50 mm
• Welded universal flange for attachment to drawbar or overrun device
• Static load capacity: 500kg
• galvanized
• swiveling
• easy operation of the crank
• with grease nipple
• Weight: approx. 11kg

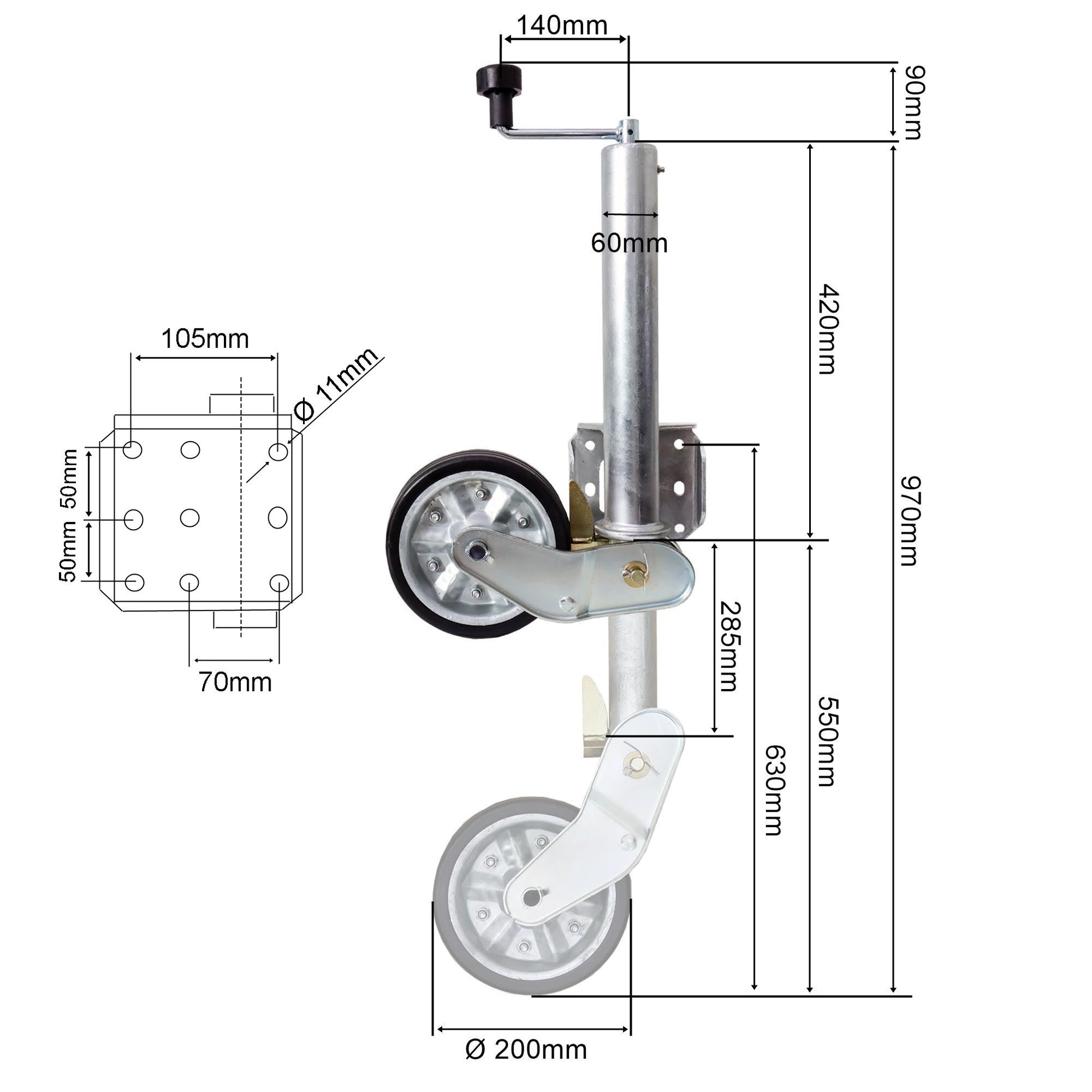

• Dimensions: see product images

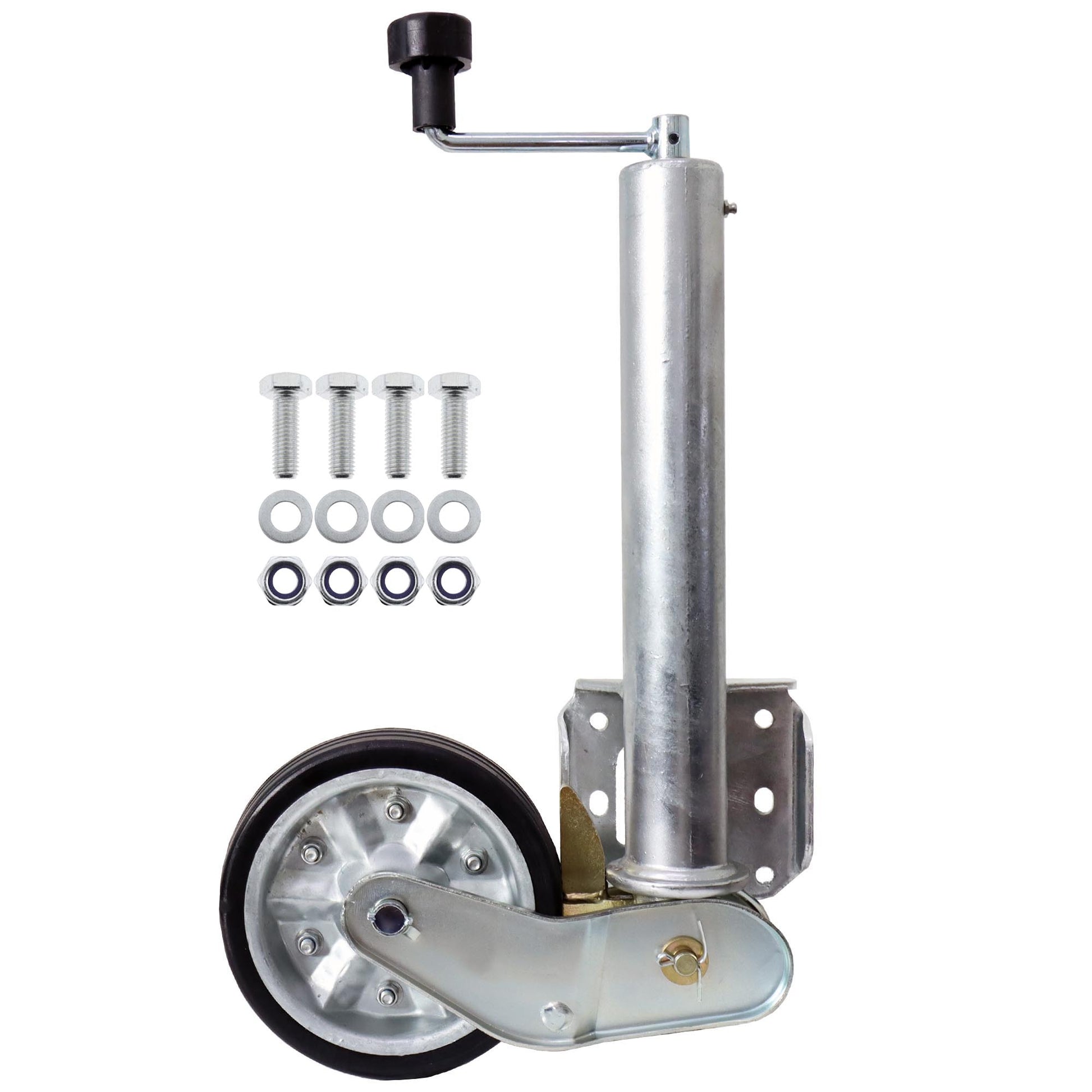

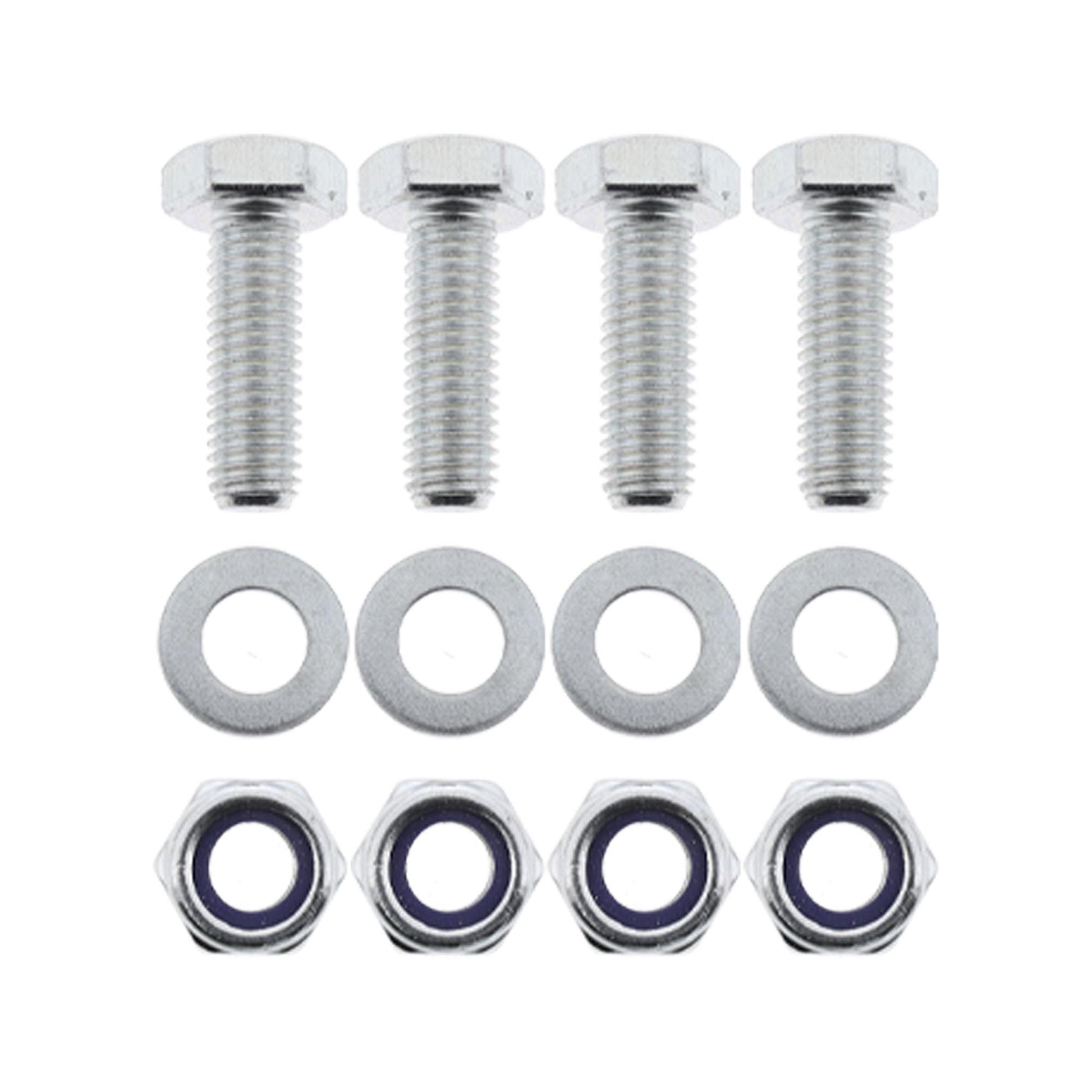

Details screw set:

• 4x M10x30 screw
• 4x M10 washer
• 4x M10 self-locking nut
