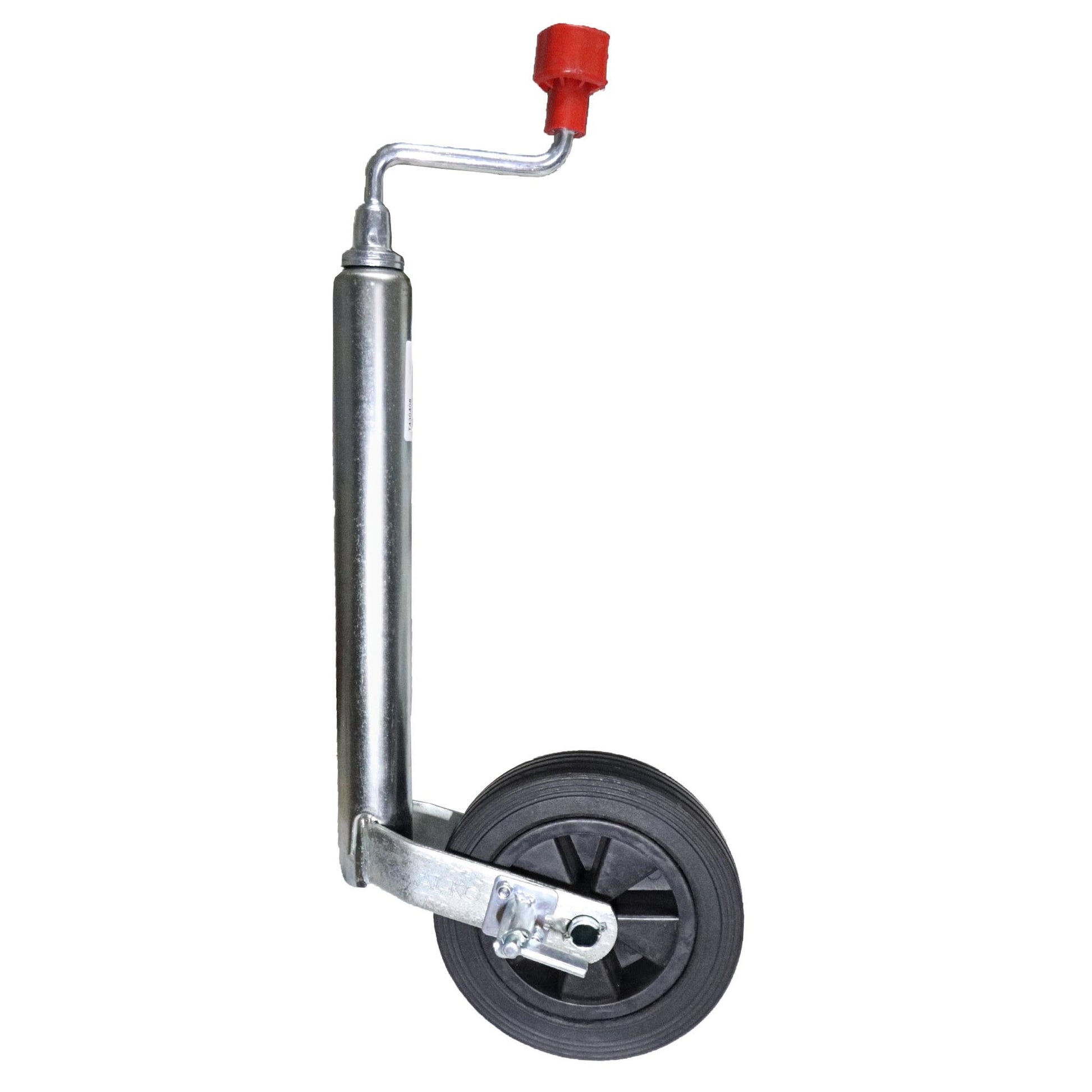

AL-KO trailer support wheel Compact 150kg with brake - 1224351

AL-KO trailer support wheel with brake

max. support load: 150kg

with solid rubber tires on plastic rims

ALKO article number: 1224351

Details about the support wheel:

Support wheels are part of the support devices on central axle trailers, which the STVZO prescribes,
if the support load is more than 50 kg. They must be height-adjustable and captive.
They are equipped with wheels for maneuvering or parking the trailer.
The mounting is done directly or with various brackets on the drawbar.

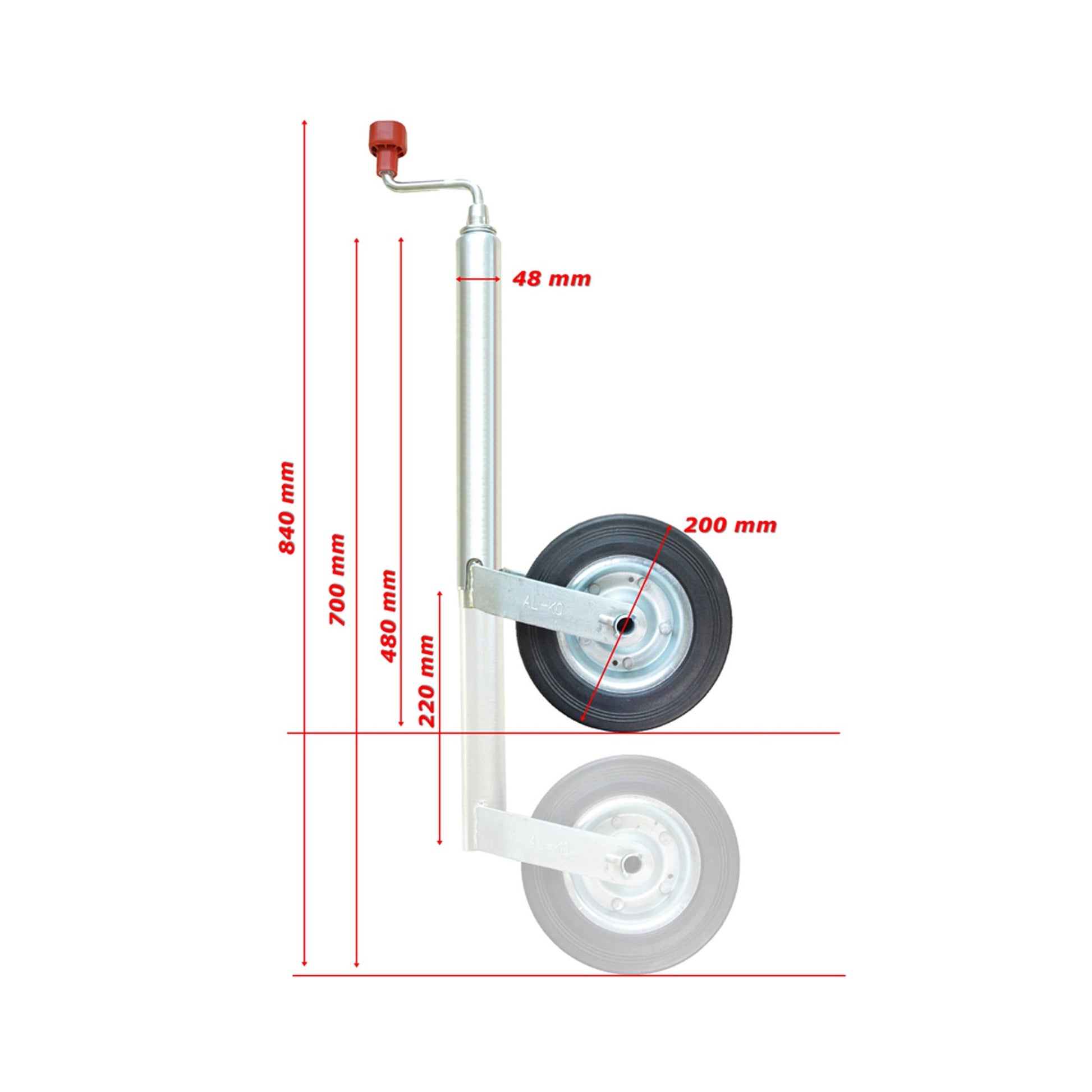

• Material: Steel

• Pipe diameter: 48 mm

• galvanized

• Static load capacity: 150kg

• lifting height: 220mm

• Height: 480mm

• Rim: Steel

• Wheel: 200 x 50 mm solid rubber

• Wheel bearing: plain bearing
