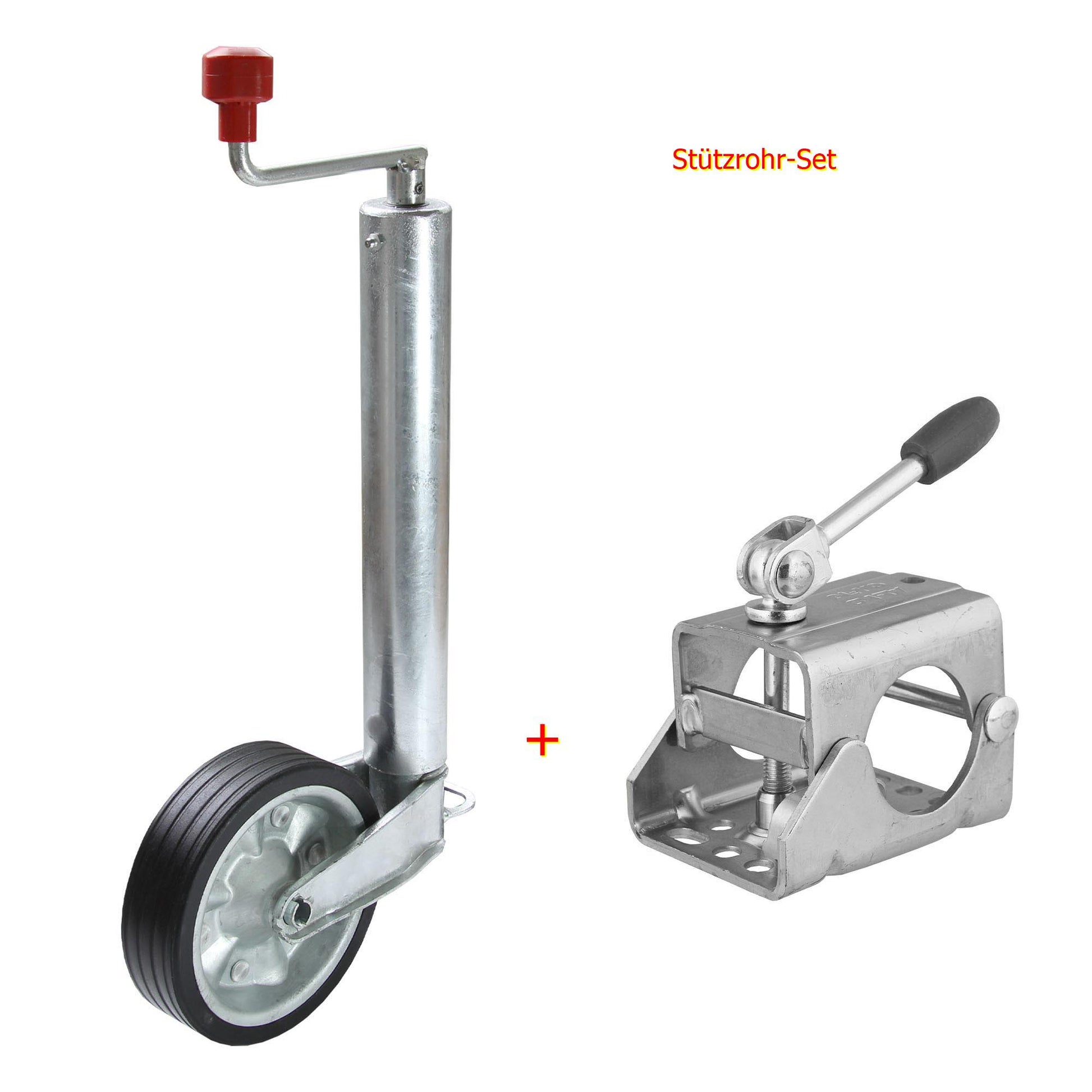

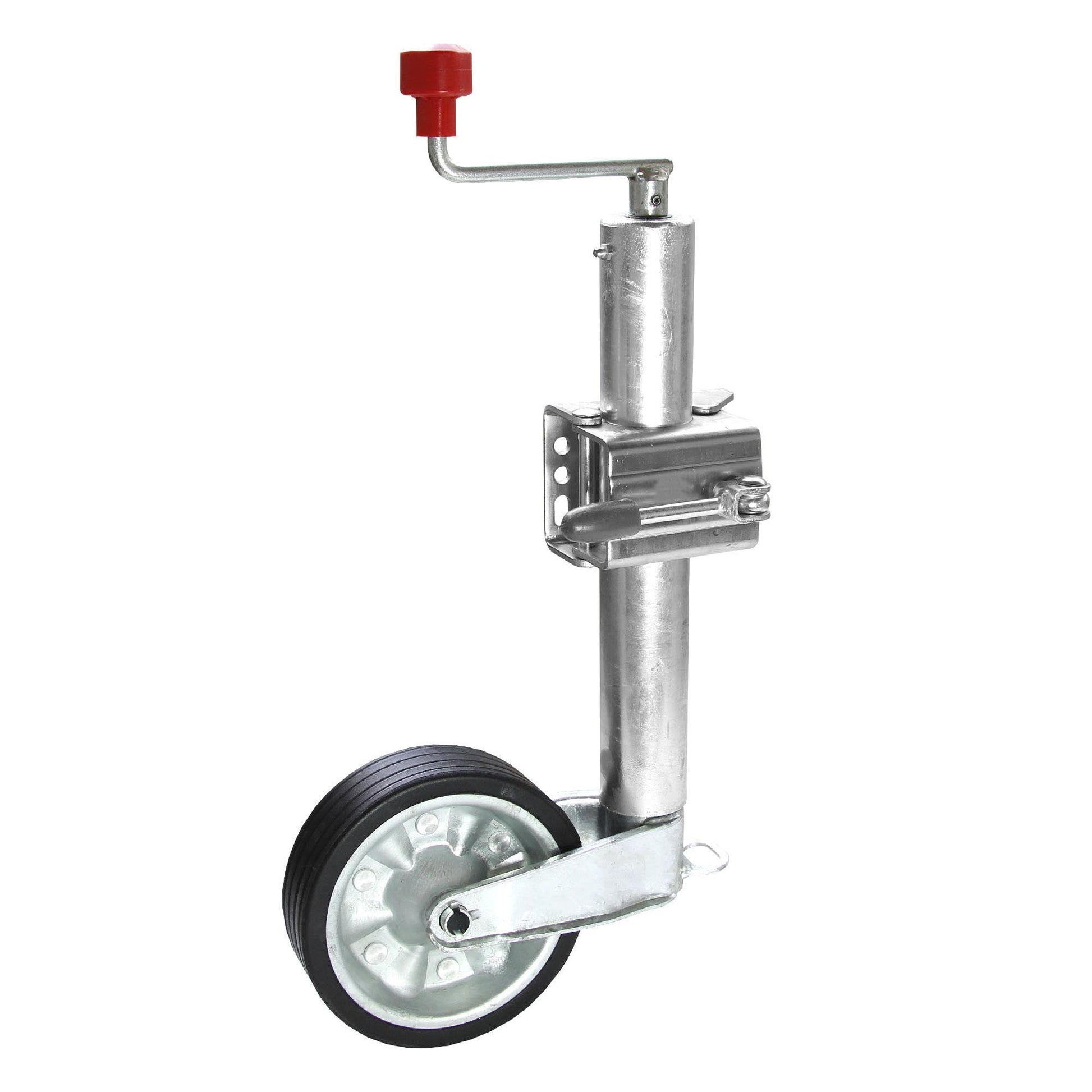

Support wheel set with clamp holder 500kg Ø60mm

trailer support wheel with clamp holder

Ø60mm pipe

Max. support load: 500 kg

for trailers, caravans, etc.

---

Description :

Support wheels are part of the support devices on central axle trailers, which are prescribed by the STVZO if the support load is more than 50 kg. They must be height-adjustable and attached in a captive manner.

They are equipped with wheels for maneuvering or parking the trailer. They are mounted directly or with various brackets on the drawbar.

---

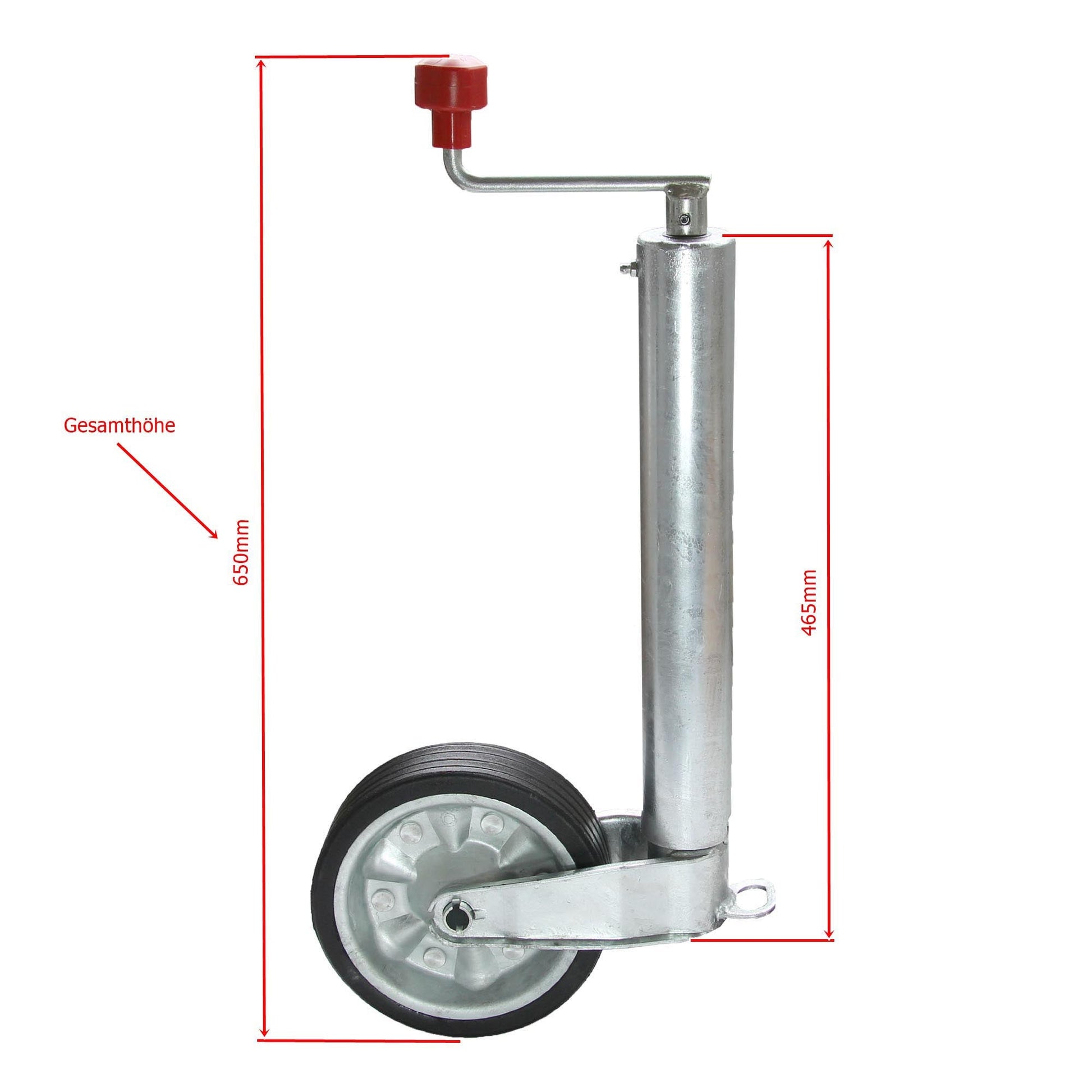

Details support wheel:

- Built-in thrust bearing under the crank

- Pipe diameter: 60 mm

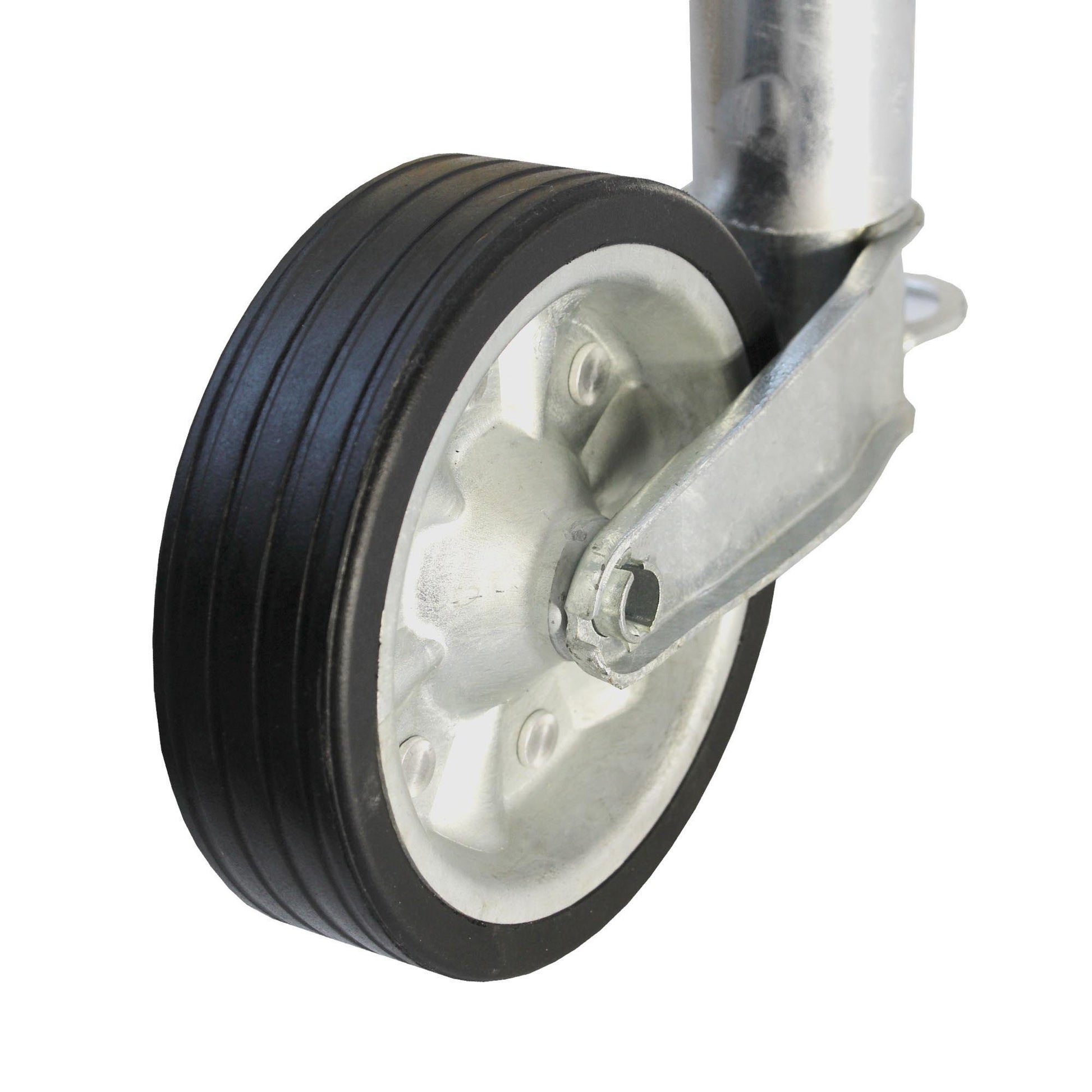

- Solid rubber wheel with steel rim 200 x 50 mm

- Static load capacity: 500kg

- Load capacity: dynamic: 300kg

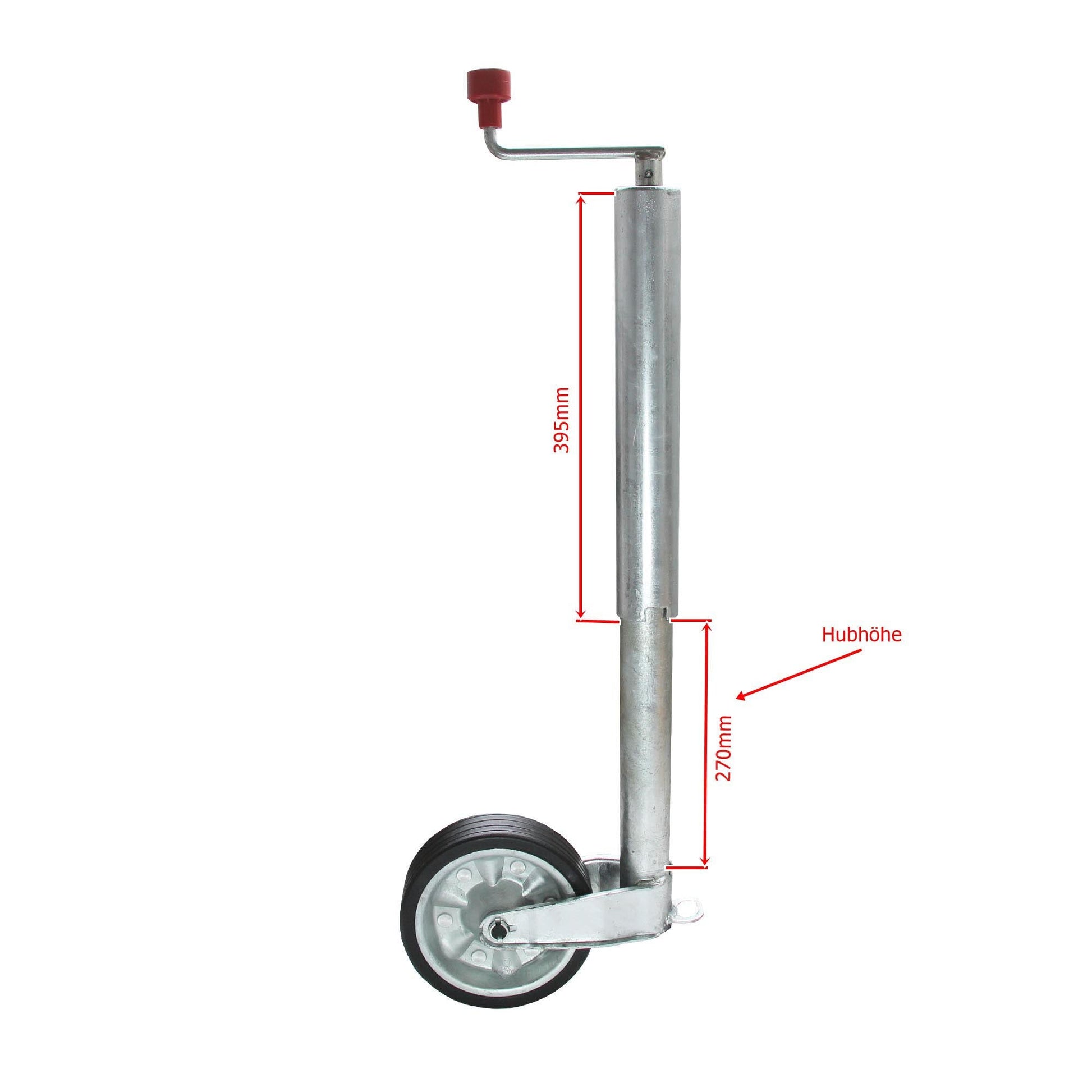

- Pipe length approx. 395 mm

- Lifting height: 270mm

- galvanized

- swiveling

- easy operation of the crank

- with grease nipple

- Weight: 6.5kg

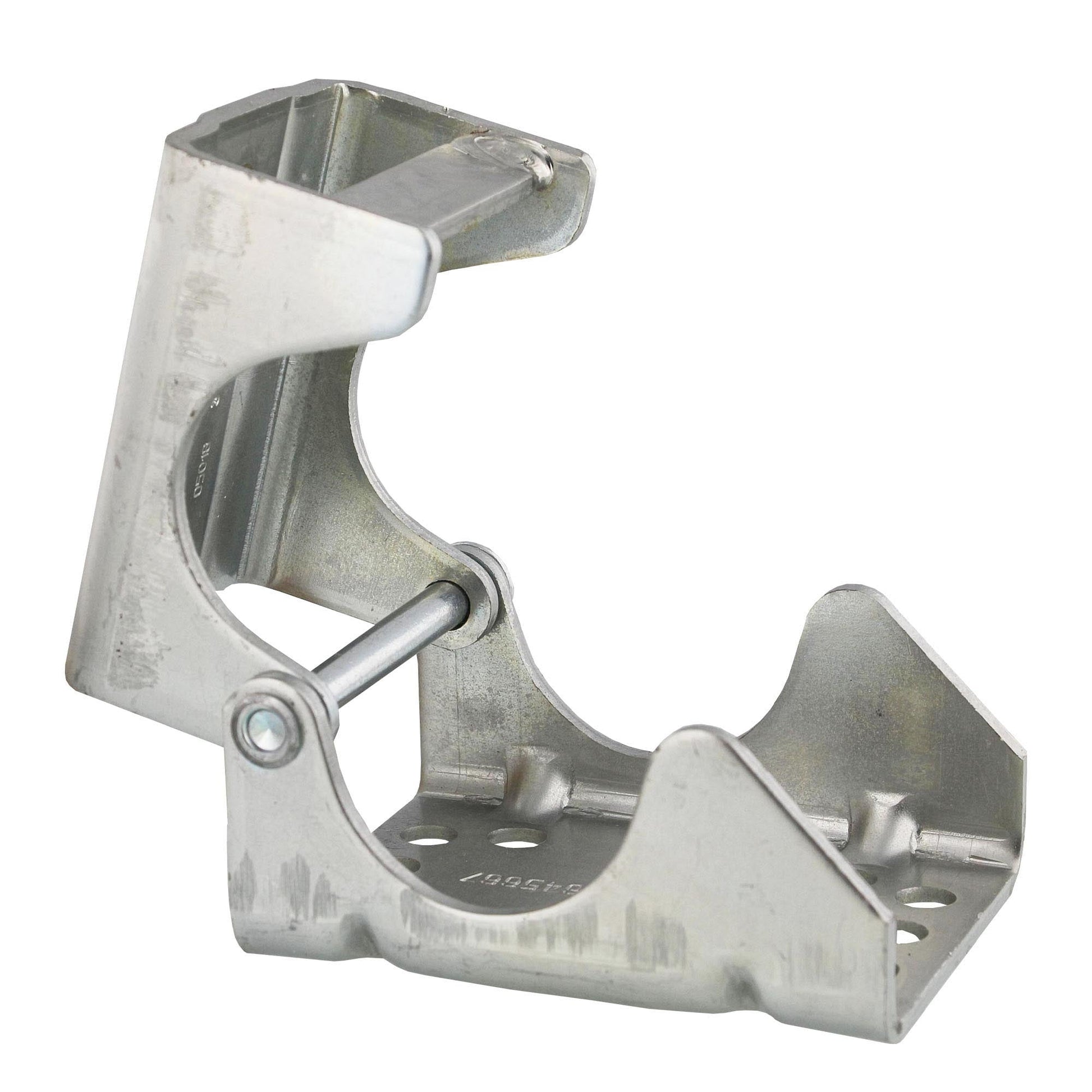

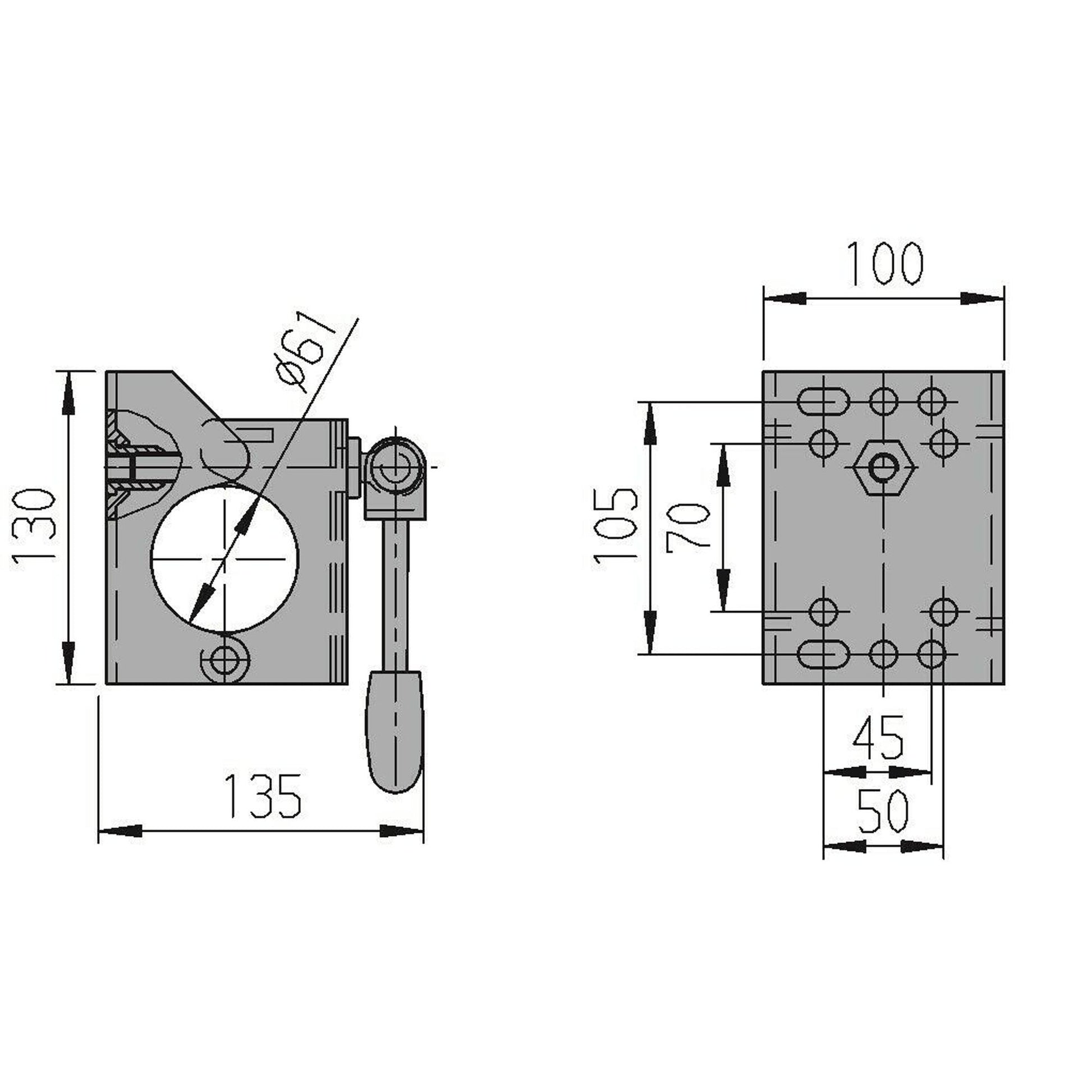

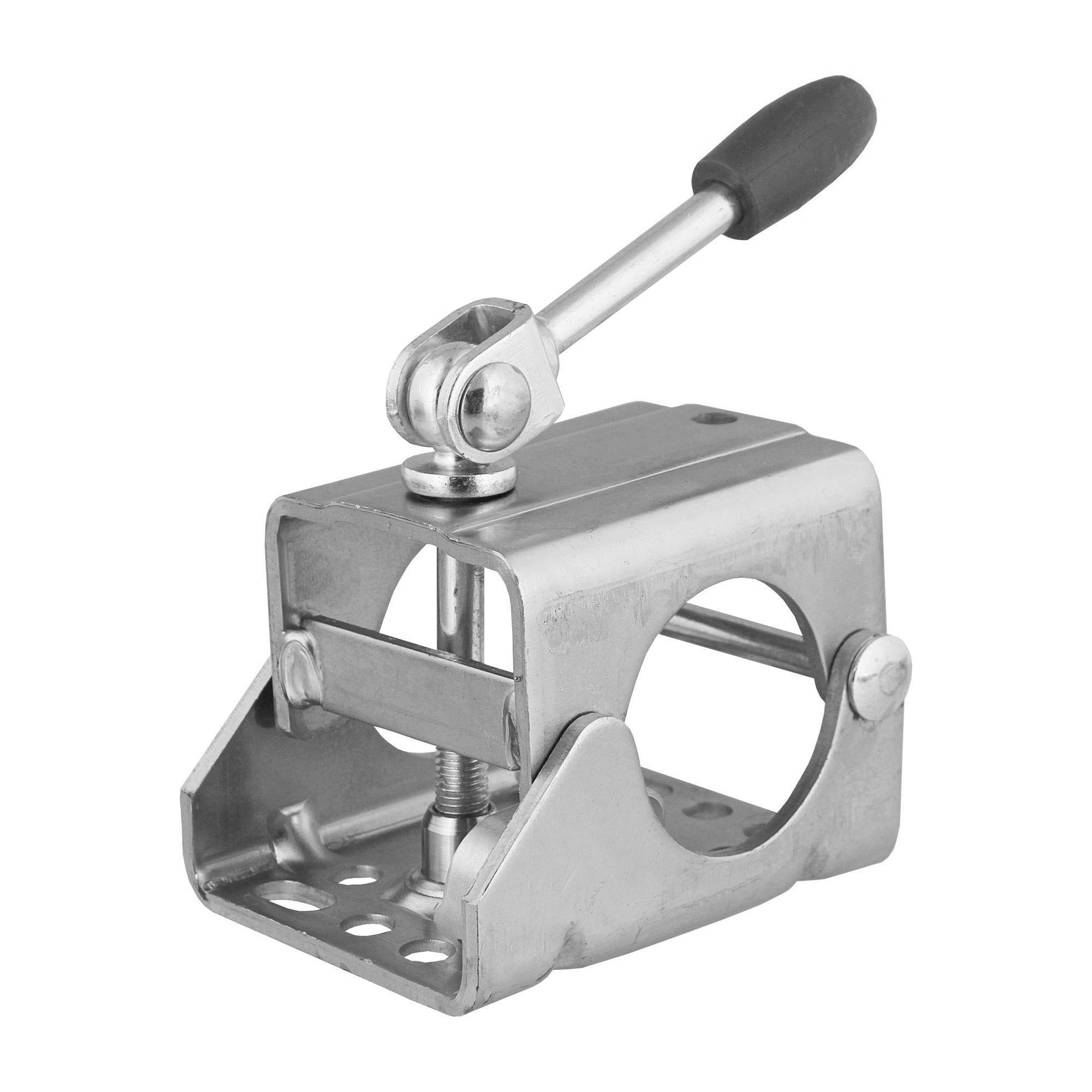

Details clamp holder:

- for pipe Ø 60mm

- made of galvanized steel

- variable assembly

- Universal hole pattern

- with folding lever

- Weight: 1.55kg
