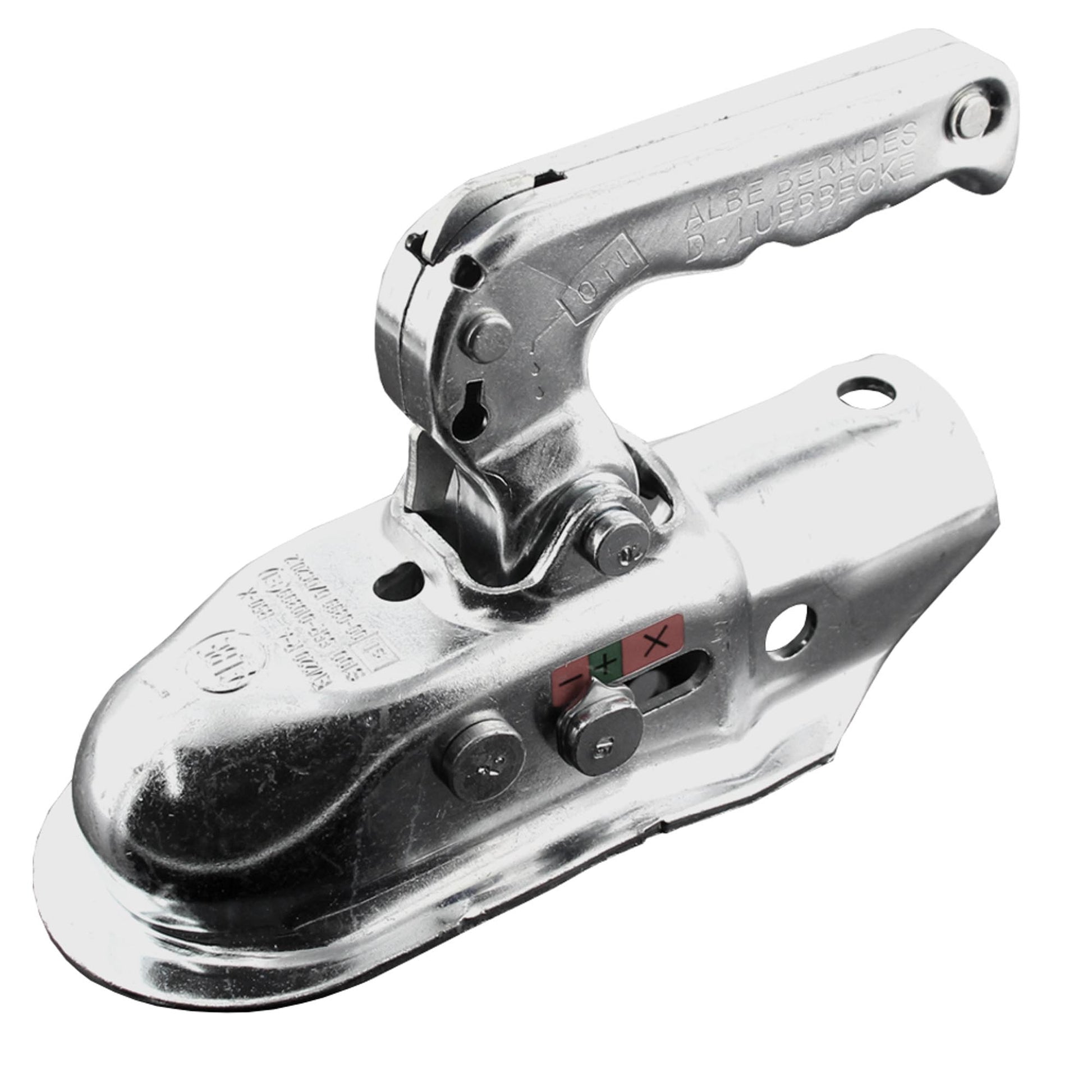

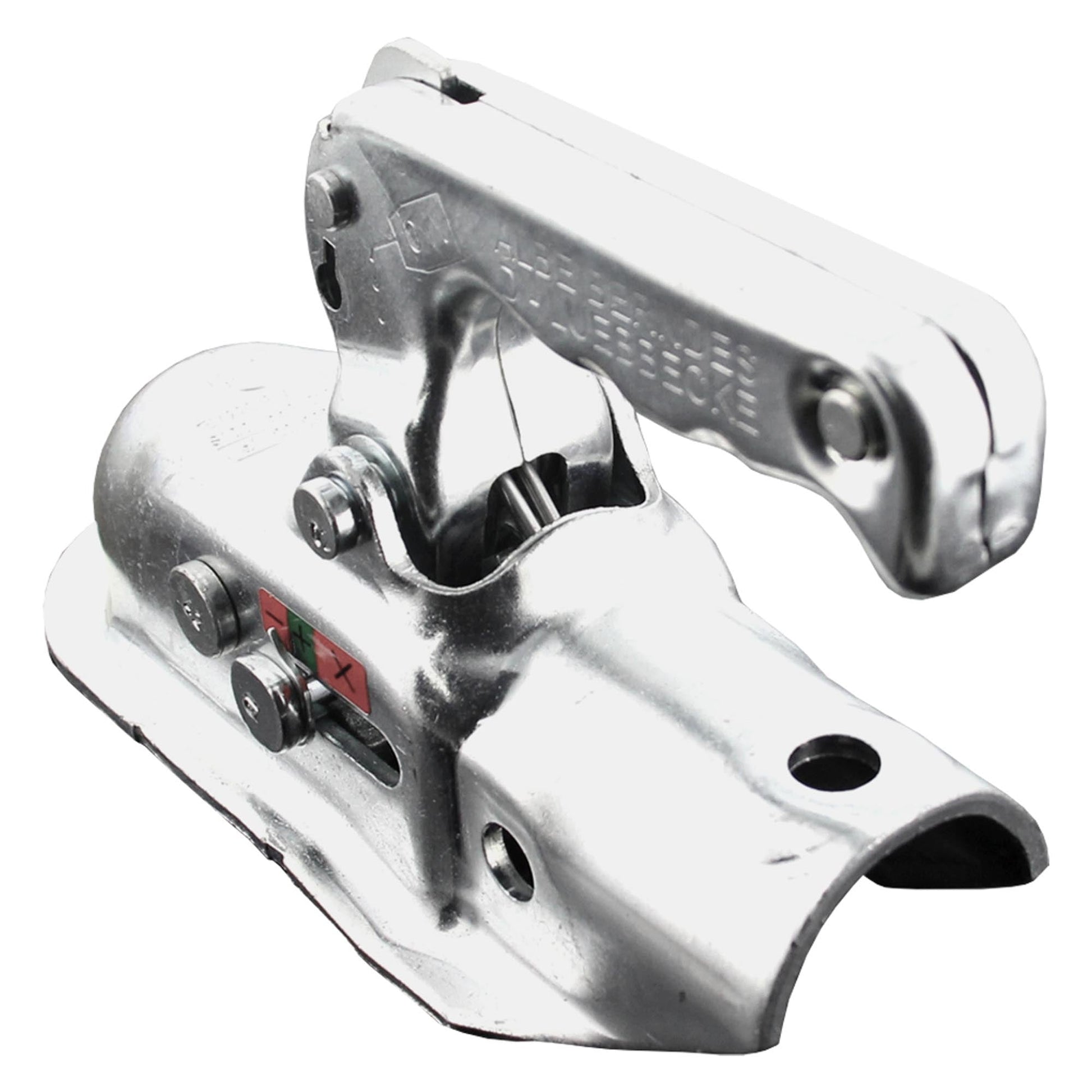

Winterhoff WW220RA tow bar 2200kg formerly ALBE EM220RA

Winterhoff tow ball coupling

ball diameter Ø50 mm

towing capacity: 2200kg

Type WW-220R Version A

max. support load S = 100 kg

Description:

Tow ball couplings for trailers with overrun devices up to 2200 kg,
for Ø45/46 mm drawbar round / drawbar tube, ball diameter Ø50mm

Details:

• max. total trailer weight GA = 2,200 kg
• max. support load S = 100 kg
• D-value = 20.2 kN
• Weight approx. 1,500 g

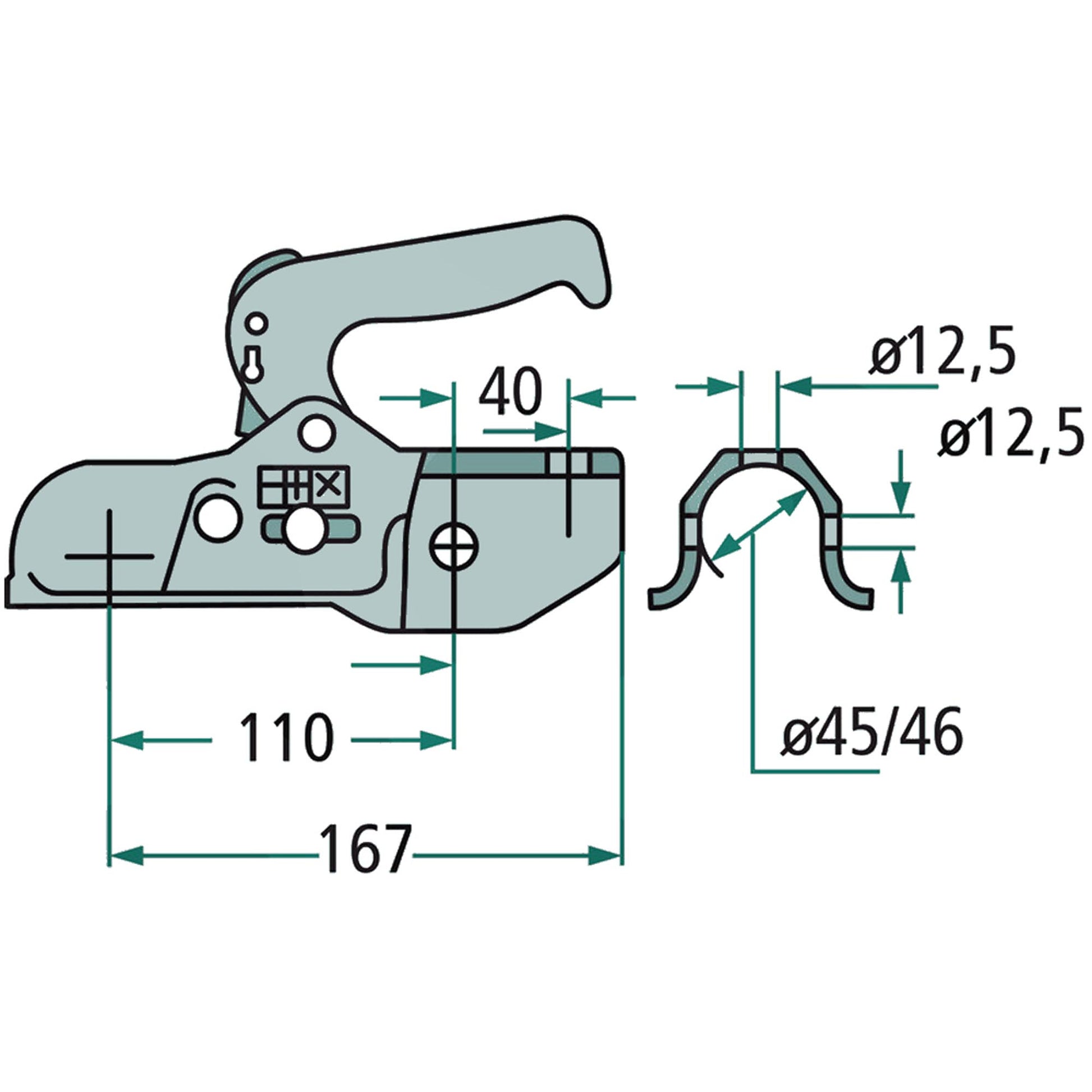

• drawbar connection: Ø 45/46 mm
• Cross-bolted (first hole horizontal - second hole vertical)
• Hole spacing: approx. 40 mm
• bore diameter = 12.5 mm
• Material: Steel
• with wear indicator
